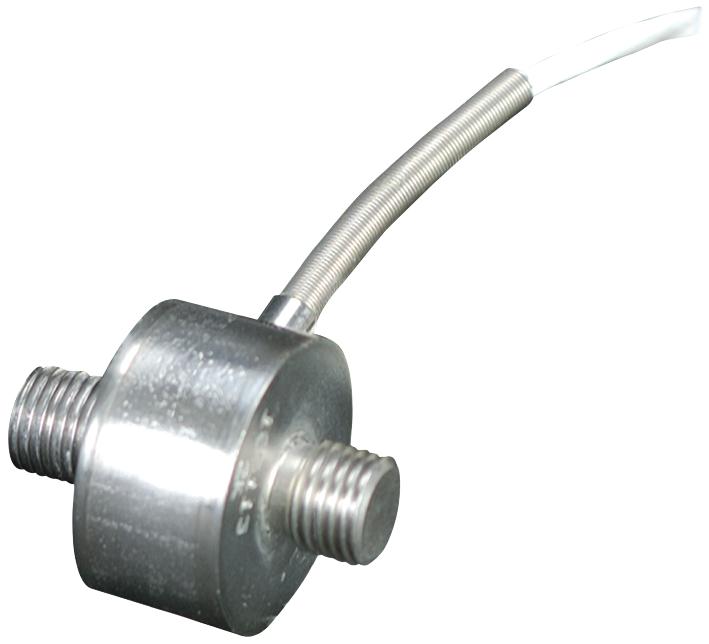

OMEGA LC202300 Miniature Load Cell
Omega's LC202/LCM202 Series miniature universal load cells are compact, rugged, and constructed from stainless steel, providing reliable tension and compression measurements from 50 to 10,000 pounds and 100 to 50,000 Newtons. These load cells feature a 5-point calibration, 0.25% accuracy, and are suitable for test stands and difficult locations. With dual mounting studs, IP65 protection, and a temperature range from -54°C to 121°C, they ensure long-lasting performance in industrial environments. These load cells are ideal for industrial testing, quality control, and measurement applications needing precise load measurement.
OMEGA LC202300 Miniature Load Cell Specifications:
- Excitation: 10 Vdc, 15 Vdc max
- Output: 2 mV/V nominal
- Accuracy: +0.25% FSO linearity, hysteresis, repeatability
- Calibration: 5-Point, 0%, 50%, 100%, 50%, 0%
- Zero Balance: +2% FSO
- Temperature Range: -54 to 121°C (-65 to 250°F)
- Compensated Temp Range: 16 to 71°C (60 to 160°F)
- Thermal Zero Effect: 0.009% FSO/°C
- Thermal Span Effect: 0.009% FSO/°C
- Overload Limits: Safe overload 150%, ultimate 300%
- Input Resistance: Minimum 360 Ω
- Output Resistance: 350 +10 Ω
- Construction: Stainless steel
- Electrical: 1.5 m 4-conductor shielded cable
- Protection Class: IP65
- Dimensions: Diameter 25-35 mm (0.98-1.38 inches)
Buy the Omega LC202–Reliable Load Cells for Industrial Applications
Order Omega LC202 series miniature load cells online today and enhance your measurement accuracy in industrial applications. These stainless steel, rugged load cells deliver 0.25% accuracy with a 5-point calibration, making them ideal for test stands and challenging environments. Featuring dual mounting studs, IP65 protection, and a wide temperature range, they ensure long-lasting, reliable performance. Whether for tension or compression testing, these compact load cells are your perfect choice for precision measurement needs. Purchase now for fast delivery and trusted quality.
Buy Omega LC202-300 load cell now and experience unmatched reliability and performance in industrial testing and measurement tasks.
