OMEGA CN16DPT144EIP Process Controller
The CN16DPT144EIP is a versatile and high-precision temperature, process, and strain controller designed for industrial applications. Featuring a bright 4-digit, 9-segment LED display with wide viewing angles and firmware configurability, it supports thermocouples, RTDs, thermistors, analog voltage/current, and strain inputs. This controller offers extensive programmability with up to 99 programs, multiple control modes including PID with auto-tune and fuzzy logic, and flexible output options such as relays, analog, and pulse signals. Embedded Ethernet enables LAN and internet connectivity, making it ideal for demanding automation and lab environments.
OMEGA CN16DPT144EIP Process Controller Specifications:
- Display: 4-digit, 9-segment LED square, 42 mm wide, environmental conditions: 0 to 50°C, 90% RH non-condensing
- Inputs: Thermocouples (9 types), RTDs (100/500/1000 Q), thermistors (2252 Q, 5K Q, 10K Q), process voltage/current, strain (±50 mV, ±100 mV)
- Input Impedances: 10 MΩ for voltage/strain, 5 Ω for process current, 10 KΩ for thermocouples
- Control Modes: ON/OFF, PID with auto-tune, fuzzy logic adaptive control, proportional, integral, derivative, cycle times 0.1 to 199 sec
- Outputs: 2 to 6 control/alarm/retransmission, options include DC pulse, SSR, mechanical relays, analog voltage/current (0-10V/0-20mA), isolated/double isolated analog
- Communication: Standard USB, optional Ethernet (RJ45), RS232/RS485, protocols include ASCII and MODBUS, Ethernet compliance IEEE 802.3 10/100 Base-T
- Power: 90-240 Vac, low-voltage option 12-36 Vdc, power consumption ≈ 4 W, environmental conditions: 0 to 50°C, 90% RH non-condensing
- Certifications: UL, cUL, CE; safety approvals meet IEC 127-3 and UL standards, NEMA 4x front bezel for IP65 protection

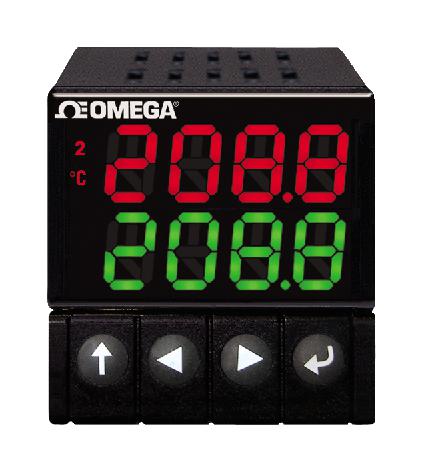

Buy the Omega Series CN16DPT144EIP Temperature Controller: CN16DPT144EIP
Order the Omega CN16DPT144EIP today for an advanced, high-precision process controller designed for industrial automation, laboratory research, and demanding control systems. Equipped with customizable 4-digit LED display, extensive input compatibility including thermocouples, RTDs, thermistors, and strain sensors, it supports multiple control modes such as PID with auto-tune and fuzzy logic. Its flexible outputs include relays, analog signals, and pulse control, complemented by embedded Ethernet for remote monitoring and data transfer. Ideal for tight process control, diagnostics, and automation applications, ensuring reliable performance and robust connectivity.
Get Omega CN16DPT144EIP today—built for precision and long-lasting durability with versatile inputs and network connectivity.
Frequently Asked Questions
Where can I buy OMEGA CN16DPT144EIP?
You can click on the BUY or RFQ button to purchase CN16DPT144EIP from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN16DPT144EIP?
You can download the CN16DPT144EIP datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN16DPT144EIP?
OMEGA
