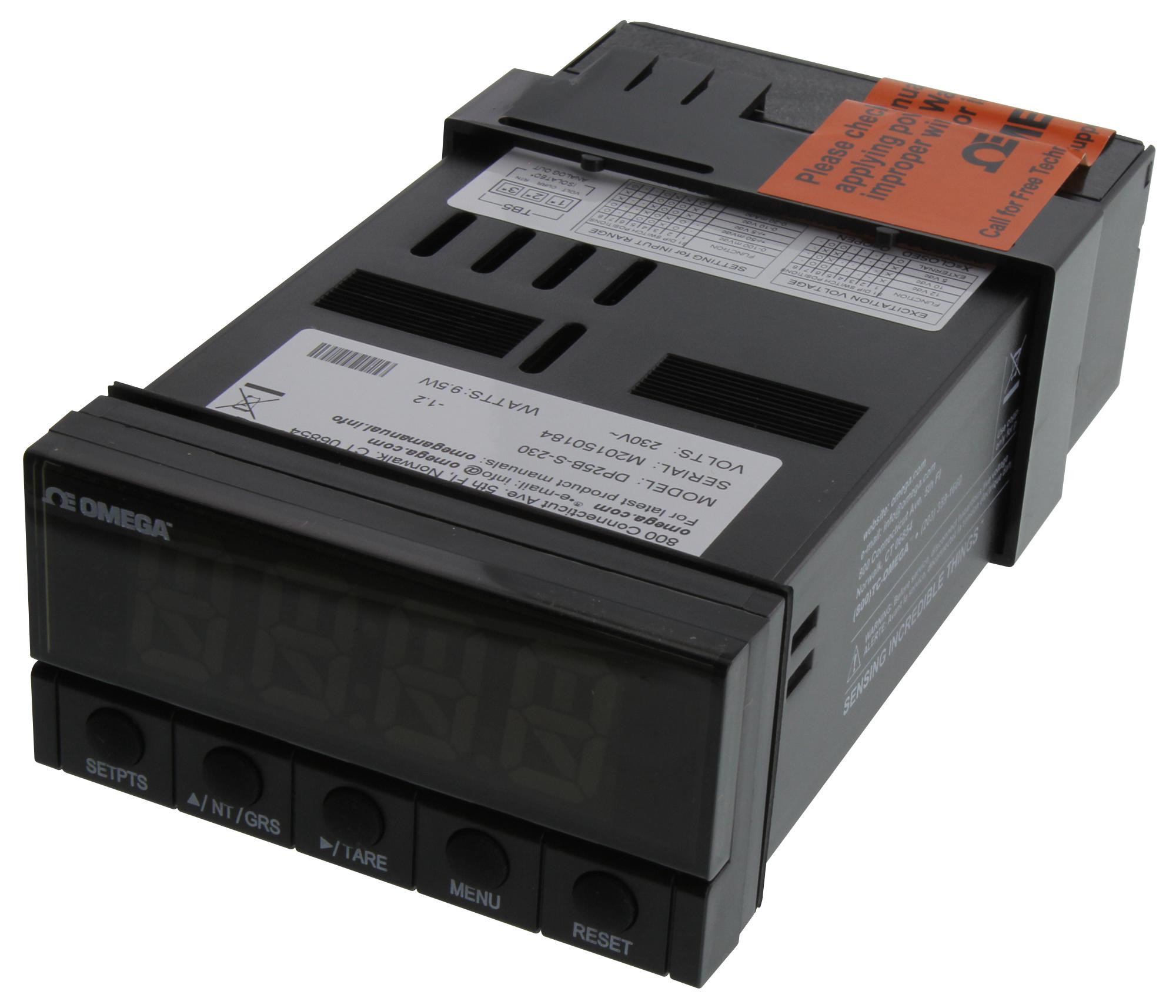

OMEGA DP25BS230 digital process meter
The DP25BS230 series is a versatile digital panel meter designed for process, temperature, strain, thermocouple, and RTD measurements, featuring bright customizable LED displays in red, amber, or green. Equipped with microprocessor-based signal conditioning, dual relay outputs, and scalable analog outputs, it provides high accuracy and reliability for industrial applications. With optional features like remote tare, custom firmware, and prototype-build customization, these meters suit diverse control and monitoring needs. Approachable for accurate temperature reading, process control, and strain measurement in demanding environments, ensuring durability and ease of integration.
OMEGA DP25BS230 digital process meter Specifications:
- Display: 4-digit, 9-segment, 21 mm high LED display in red, amber, or green (programmable)
- Display Technique: Dual slope ADC with 15-bit resolution, automatic polarity
- Read Rate: 3 samples/sec, Step Response: 2 sec
- Relay Outputs: 2 form 'C' (SPDT) relays, rated 5 A 250 Vac, with programmable active high/low alarms
- Analog Output: Optional 0-10 V, 4-20 mA, or 0-20 mA, scalable for display or proportional control
- Inputs: Thermocouples (J, K, T, J DIN), RTDs (Pt 100), process signals (DC voltage/current), strain gages
- Power Supply: 115 Vac or 230 Vac +10%, or 10-32 Vdc, 26-56 Vdc, max 8-11 W, overvoltage protected
- Isolation: dielectric strength to 2500 V transient, EMC immunity: EN 61010 compliant
- Operating Temperature: 0–50°C, Storage: -40–85°C, Humidity: 90% @ 40°C
- Dimensions: 48 mm (height) x 96 mm (width) x 152 mm (depth), Panel cutout: 45 mm x 92 mm
- Weight: 36 g
- Additional: Custom firmware, color bezels, and enclosures available for OEM integration
Buy the Omega DP25BS230 – Reliable Process and Temperature Meter for Industrial Applications
Purchase the Omega DP25BS230 digital process meter today to enhance your industrial control system. Its bright, customizable display and multi-range inputs ensure accurate temperature, process, and strain measurement. Equipped with dual relays and scalable analog outputs, it offers flexible integration for various applications. The easy-to-use interface, robust construction, and optional features like remote tare and custom firmware make this meter ideal for demanding environments. Order now online for fast delivery and reliable performance, ensuring your process control is precise and efficient.
Get Omega DP25BS230 today—built for precision and long-lasting durability in process and temperature measurements.
Frequently Asked Questions
Where can I buy OMEGA DP25BS230?
You can click on the BUY or RFQ button to purchase DP25BS230 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP25BS230?
You can download the DP25BS230 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP25BS230?
OMEGA
