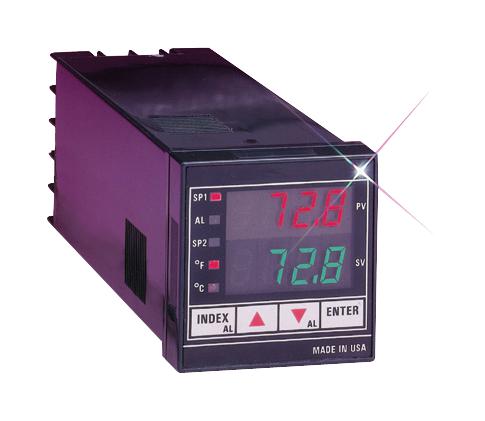

OMEGA CN76133 Temperature Controller
The CN76133 is a compact DIN-sized autotune controller designed for precise temperature regulation across heating, cooling, and heat/cool processes. Equipped with dual 4-digit displays, it offers programmable control modes, autotune, and alarms. Features include scalable thermocouple and RTD inputs, digital and analog outputs, and optional RS485 communication. Its rugged NEMA 2, 3R, and 12 rated front panel provides water and dust resistance. The device is ideal for industrial environments requiring reliable, flexible, and easy-to-program temperature control solutions with self-diagnosis, memory retention, and multiple safety features.
OMEGA CN76133 Temperature Controller Specifications:
- Inputs: Thermocouple, RTD, voltage or current; ranges vary by input type
- Resolution: Fully field scalable to engineering units with up to 2 decimal places
- Accuracy: +0.25% span +1 digit
- Input Impedance: 3 MΩ minimum for thermocouple, 200 Ω for RTD, 249 Ω for current, 5 kΩ for voltage
- Sensor Break Protection: De-energizes control outputs to protect system
- Loop Break Protection: Error message for shorted sensor or open circuit, break time adjustable from off to 99 minutes
- Setpoint Range: Adjustable and programmable
- Display: Dual 4-digit, 7-segment LED, process variable in red, setpoint in green
- Control Action: Reverse (heat) or direct (cool), selectable for single or dual setpoints
- Control Modes: Time-proportioning and proportional control with automatic tuning options
- Proportional Band: 6 to 5000°F or equivalent °C units; voltage/current models 6 to 9990
- Integral and Derivative Times: Adjustable within 0.01 to 99.9 minutes
- Cycle Time: 2 to 80 seconds
- External Wiring: Screw terminal connections for outputs and sensors
- Power Supply: 100-240 Vac (+10% -15%) or 132-240 Vdc (+10% -20%)
- Power Consumption: Max 5 VA
- Dimensions: 48 x 48 x 125 mm (1.88 x 1.88 x 4.925 inches), panel cutout 45 mm (1.775 inches) square
- Environmental: Operating at -10 to 55°C, storage -40 to 80°C, humidity up to 90%
- Outputs: Mechanical relay (SPST, 3A @ 250 Vac), solid-state relay (up to 3.5A), voltage/current outputs, and optional pulse outputs
- Alarms: Two alarms with configurable triggers, rated for 3A @ 250 Vac
- Communication: Optional RS485 digital interface for remote data exchange
- Additional Features: Non-volatile memory, ramp/soak functions, security levels, self-diagnosis
Buy the Buy BrandName Temperature Controller Part Number CN76133 Online
Enhance your industrial temperature regulation with this compact, programmable temperature controller. Featuring autotune, dual displays, scalable inputs, alarms, and optional RS485 communication, it offers flexible and reliable control for heating, cooling, and heat/cool processes. Its rugged front panel ensures durability in harsh environments. Easy front-panel programming, self-diagnosis, and non-volatile memory improve operational efficiency. Whether managing temperature, pressure, flow, or humidity, this versatile device provides exceptional precision and safety features, making it an ideal choice for diverse industrial applications.
Buy BrandName CN76133 now and experience unmatched reliability and precise temperature control for industrial applications.
