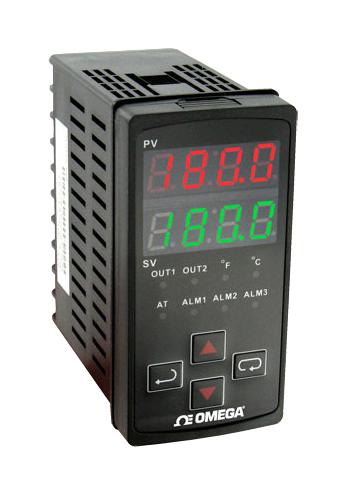

OMEGA CN7633 Industrial Temperature Controller
The CN7200 series DIN temperature/process controllers offer precise dual-control with programmable ramp/soak stages, supporting thermocouple, RTD, and voltage inputs. Features include dual LED displays, up to 8 ramp/soak programs, auto-tune, and configurable outputs like relay, DC pulse, current, or linear voltage. With RS485 MODBUS® communication, alarm functions, and nonvolatile memory backup, these controllers suit industrial process control demanding accurate temperature regulation with easy integration in various heating and cooling applications. Compact design with IP66 rating ensures durability and easy installation.
OMEGA CN7633 Industrial Temperature Controller Specifications:
- Inputs: Thermocouple types K, J, L, T, E, N, R, S, 100-1800°C, Pt 100 RTD, 0-50 mV, 0-10 V, 4-20 mA
- Display: Two 4-digit, 7-segment PV (Red, 19 mm), SV (Green, 12.7 mm)
- Control Outputs: Relay (5A @ 250 Vac), Voltage Pulse (14V, 10-20%), Current (4-20 mA), Linear Voltage (0-10 V)
- Power Supply: 100-240 Vac, 50/60 Hz
- Dimensions: 96 x 96 x 15.8 mm bezel, Panel cutout 92 mm, Weight 425 g
- Operating Temperature: 0 to 50°C
- Accuracy: +0.25% span, +1 LSD
- Communication: RS485 MODBUS RTU
- Ingress Protection: IP66
Buy the Buy Omega CN7200 Series Temperature Controller Part Number CN7633 Online
Order the Omega CN7633 industrial temperature controller online today to experience reliable and accurate process control. Equipped with dual LED displays, programmable ramp/soak functions, and versatile inputs including thermocouple and RTD types, this controller ensures optimal temperature regulation in demanding environments. Featuring RS485 communication for seamless integration, alarm functions, and a compact IP66-rated design, it is ideal for various manufacturing and processing facilities. Purchase now for easy installation and long-term operational efficiency in your automation system.
Get Omega CN7633 today—built for precision and long-lasting durability in industrial temperature control applications.
Frequently Asked Questions
Where can I buy OMEGA CN7633?
You can click on the BUY or RFQ button to purchase CN7633 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN7633?
You can download the CN7633 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN7633?
OMEGA
