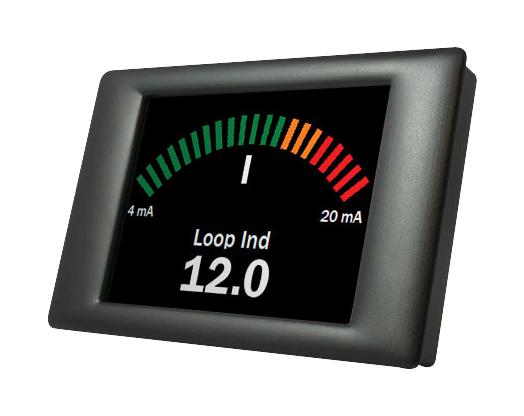

OMEGA OMSGD24MIP Color TFT Display
The waterproof smart graphics display offers a 2.4-inch color TFT screen with configurable display options, over 40 standard configurations, and customizable colors and labels. Compatible with Windows software, it features voltage and current input models, with waterproof NEMA 6 (IP67) versions, and supports temperature measurement via thermocouple with an add-on board. Its rugged design suits industrial applications requiring reliable, configurable visual displays with easy setup via USB interface, ideal for process monitoring and control in demanding environments.
OMEGA OMSGD24MIP Color TFT Display Specifications:
- Display Size: 2.4 inch color TFT, 320 x 240 pixels, 16-bit color
- Input Types: Voltage (2 channels) and 4-20 mA current input models
- Voltage Input Range: 0 to 40 V with resolutions from 0.3 mV to 9.8 mV
- Current Input: 4 to 20 mA, 0 mA min, 50 mA max, with 0.4 to 2.0 V loop voltage drop
- Power Supply: 4 to 30 Vdc, typical current 35-190 mA depending on model
- Alarm Outputs: 2 open-collector outputs, up to 10 mA each
- Waterproof Models: NEMA 6 (IP67) rated, with 12-way NEMA 6 connection
- Operating Temperature: 0 to 40°C (32 to 104°F)
- Dimensions: Panel cutout 74 x 46 mm, viewing area varies by model (e.g., 61mm for 2.4”), screw terminal connection
- Software Compatibility: Windows XP, Vista, 7, 8; free downloadable configuration software
- Physical Weight: 96 g for standard, 255 g waterproof models
Buy the Omega Series OM-SGD Waterproof Color TFT Display: OMSGD24MIP
Enhance your industrial automation with the Omega waterproof Series OM-SGD Color TFT Display. Featuring a 2.4-inch vibrant screen, easy USB configuration, and waterproof IP67 protection, it’s perfect for demanding environments. Utilizes voltage or current inputs with customizable configurations, alarm outputs, and thermocouple options. Quick setup with Windows software ensures rapid deployment in process monitoring and control applications. Robust and reliable, it delivers precise visual information vital for maintaining seamless operations in harsh conditions.
Order your Omega Series waterproof smart graphics display today and enhance your industrial projects with reliable, configurable visual monitoring solutions.
Frequently Asked Questions
Where can I buy OMEGA OMSGD24MIP?
You can click on the BUY or RFQ button to purchase OMSGD24MIP from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OMSGD24MIP?
You can download the OMSGD24MIP datasheet or visit the OMEGA website for support.
Who is the manufacturer of OMSGD24MIP?
OMEGA
