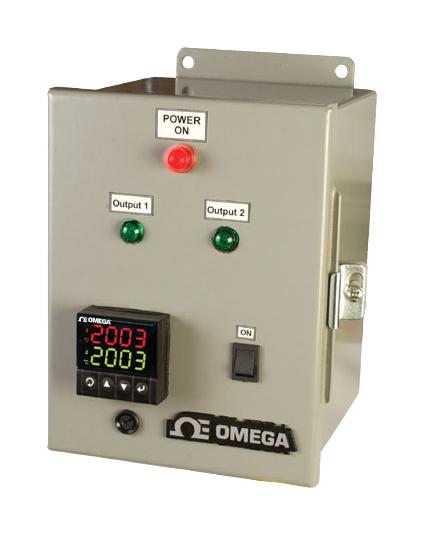

OMEGA CNICB120SBK Limit Controller
The OMEGA CNi Series Limit Controller offers versatile process measurement and alarm functions, supporting thermocouples, RTDs, voltage, and current inputs. It features a multi-color display with programmable alarms, built-in excitation, and remote reset capabilities. Designed for high accuracy (+0.5°C, 0.03% reading) and stability (RTD 0.04°C/°C, thermocouple 0.05°C/°C), it supports universal power and optional low voltage power. Its durable construction includes NEMA/IP ratings, making it ideal for precise temperature and process control applications.
OMEGA CNICB120SBK Limit Controller Specifications:
- Input Types: Thermocouple, RTD, analog voltage, analog current
- Accuracy: +0.5°C temperature; 0.03% reading
- Temperature Stability: RTD 0.04°C/°C, thermocouple 0.05°C/°C
- Process Sampling Rate: 3 samples/sec
- Display: Single 4-digit LED or Multi-color programmable
- Thermocouple Types: J, K, T, E, R, S, B, C, N, L
- RTD Input: 2-, 3-, 4-wire, 0.00385 or 0.00392 curve, 100/500/1000Ω
- Voltage Input: 0-100 mV, 0-1V, 0-10V; Impedance: 10 MΩ/1 MΩ
- Current Input: 0-20 mA (with 5Ω shunt)
- Power Supply: 90-240 VAC/110-300 VDC, optional low voltage 24 VAC/12-36 VDC
- Relay Outputs: SPDT, 250 VAC/30 VDC, 3A resistive
- Operating Temp: 0-55°C, 32-131°F
- Protection: NEMA 1/Type 1 or NEMA 4X/IP65
- Dimensions: Varying per model, approx. 48 H x 48 W x 127 mm D for DIN types
Buy the OMEGA Series CNi Limit Controller: CNICB120SBK
Enhance your temperature and process measurement with the OMEGA Limit Controller. Featuring universal inputs, a bright multi-color display, and programmable alarms, it offers unmatched flexibility for industrial applications. The device supports thermocouples, RTDs, voltage, and current inputs with high accuracy (+0.5°C, 0.03% reading) and stability. Built-in excitation and remote reset functions further improve operational efficiency. Compact and durable, this controller is suitable for demanding environments, providing reliable and scalable process control solutions for a wide range of industries.
Order your OMEGA Series CNi Limit Controller today and give your projects the dependable quality they deserve for precise temperature and process control.
Frequently Asked Questions
Where can I buy OMEGA CNICB120SBK?
You can click on the BUY or RFQ button to purchase CNICB120SBK from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CNICB120SBK?
You can download the CNICB120SBK datasheet or visit the OMEGA website for support.
Who is the manufacturer of CNICB120SBK?
OMEGA
