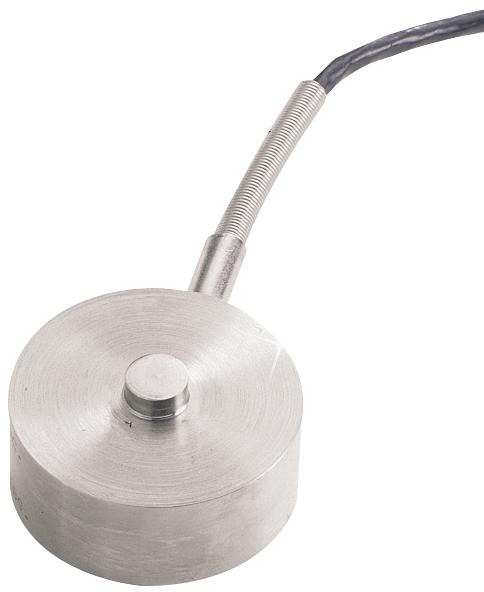

OMEGA LCGD5K Miniature Compression Load Cell
The LCGD-5K from Omega is a miniature, low-profile compression load cell designed for industrial applications. Made of stainless steel, it provides reliable long-term stability and is ideal for mounting on flat surfaces with an integral load button. With a capacity range of 0 to 5000 pounds, it features a 10 VDC excitation, a nominal output of 2 mV/V, and high accuracy of ±0.25% FSO. Operating temperatures from -54°C to 121°C, IP65 rating, and overload protection make it suitable for severe environments. It includes a 5-foot shielded cable and 5-point NIST calibration for precise measurements.
OMEGA LCGD5K Miniature Compression Load Cell Specifications:
- Material: Stainless steel
- Capacity: 0-5000 lb
- Excitation: 10 VDC
- Output: 2 mV/V nominal
- Linearity: ±0.25% FSO
- Hysteresis: ±0.20% FSO
- Repeatability: ±0.10% FSO
- Zero Balance: ±2% FSO
- Operating Temp Range: -54°C to 121°C
- Compensated Temp Range: 16°C to 71°C
- Bridge Resistance: ≥350 Ohms
- Deflection: 0.076 mm (0.003 inches)
- Protection Class: IP65
- Cable Length: 5 ft shielded cable
- Overload Capacity: Safe overload 150%, ultimate overload 300%
- Mounting: Flat surface with load button
- Calibration: 5-point NIST-traceable
- Compatible Systems: DPiS, DP41-S, DP25B-S
Buy the Buy Omega Load Cell Part Number LCGD5K Online
Enhance your force measurement setup with the Omega LCGD-5K miniature compression load cell, built of durable stainless steel. Its low profile design suits flat mounting, while its high accuracy of ±0.25% FSO ensures precise readings. Equipped with a 10 VDC excitation and a 2 mV/V output, it withstands temps from -54°C to 121°C and offers IP65 protection, making it ideal for harsh conditions. Comes with NIST calibration and shielded cable for dependable, long-term use in industrial applications.
Order your Omega SeriesLCGD-5K stainless steel compression load cell today and ensure accurate, reliable force measurement in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA LCGD5K?
You can click on the BUY or RFQ button to purchase LCGD5K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCGD5K?
You can download the LCGD5K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCGD5K?
OMEGA
