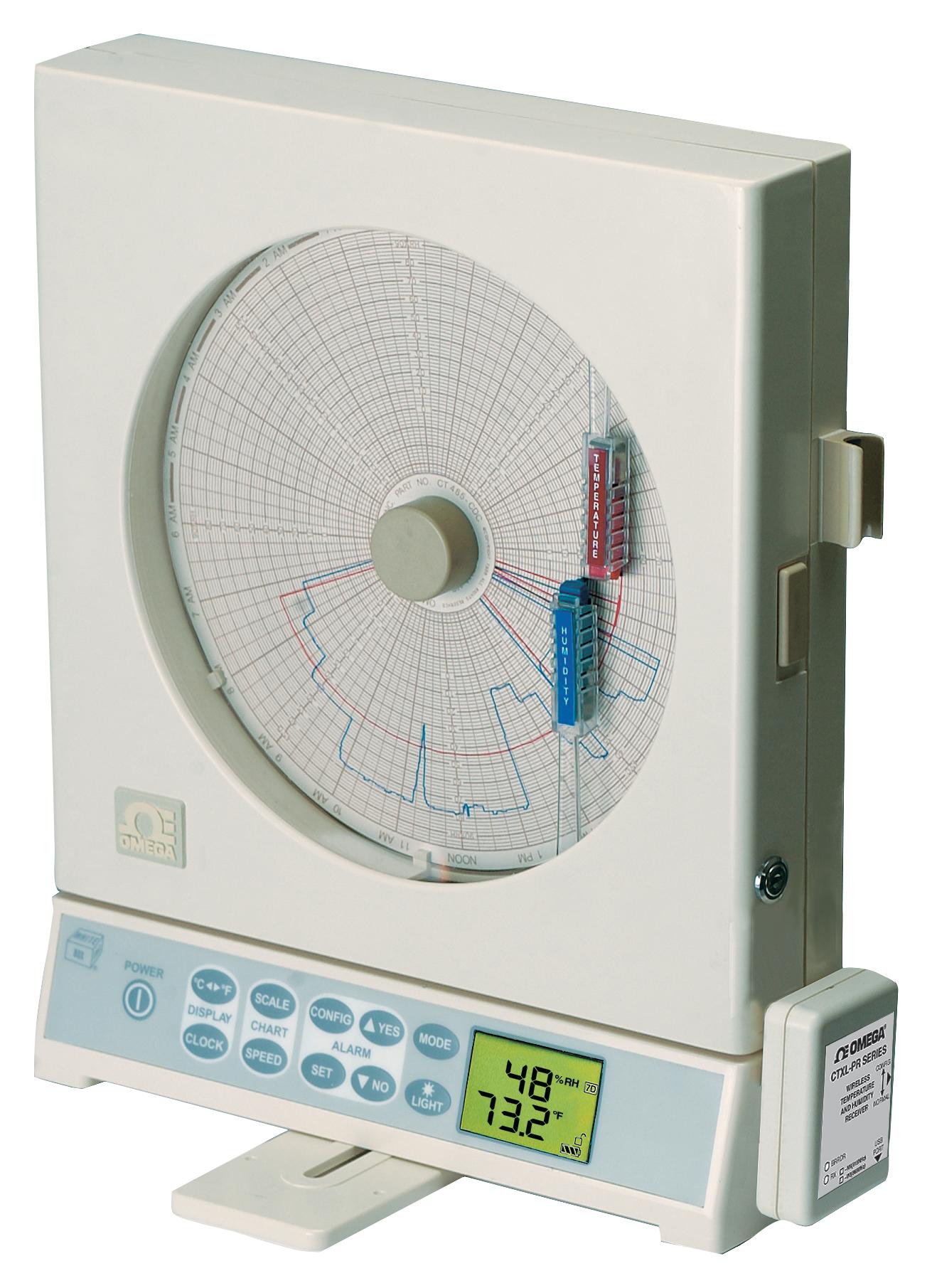

OMEGA CTXLTRHW Circular Chart Recorder
The OMEGA CTXL-TRH-W circular chart recorder combines form and function in an easy-to-use two-channel recorder. It's available to measure ambient temperature and humidity, dual thermocouple, dual process, or pH/temperature. The recorder features a custom LCD readout, convenient front panel programming, and audible/visual alarms. It's suitable for industrial and other environments, offering both benchtop and wall mount operation.
OMEGA CTXLTRHW Circular Chart Recorder Specifications:
- Temperature Range: -17.7 to 49°C (0 to 120°F)
- Display Accuracy (Temperature): ±1°C (2°F)
- Chart Accuracy (Temperature): ±1.5°C (3°F)
- Display Resolution (Temperature): 0.1°C/°F
- Relative Humidity Range: 0 to 98% RH
- Display Accuracy (Relative Humidity): ±3% RH (15 to 90% RH @ room temperature)
- Chart Accuracy (Relative Humidity): ±4% RH (15 to 90% RH)
- Display Resolution (Relative Humidity): 1% RH
- Remote Probe Distance: 12.2 m (40')
- Alarm Set Point Resolution (Temperature): 0.5°C or °F
- Alarm Set Point Resolution (Humidity): 1% RH
- Alarm Deadband (Temperature): 0.5°C or °F
- Alarm Deadband (Humidity): 3% RH
- RF Link Range (Outdoor Line of Sight): Up to 90 m (300')
- RF Link Range (Indoor/Urban): Up to 33.5 m (110')
- Transmit Sample Rate: 2 sec up to 2 min
- Radio Frequency: ISM 915 MHz or ISM 868 MHz
Buy the CTXL-TRH-W OMEGA Circular Chart Recorder | myMectronic
Purchase the OMEGA CTXL-TRH-W circular chart recorder securely online and benefit from reliable performance and accurate data logging.
Buy Now
Frequently Asked Questions
Where can I buy OMEGA CTXLTRHW?
You can click on the BUY or RFQ button to purchase CTXLTRHW from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CTXLTRHW?
You can download the CTXLTRHW datasheet or visit the OMEGA website for support.
Who is the manufacturer of CTXLTRHW?
OMEGA
