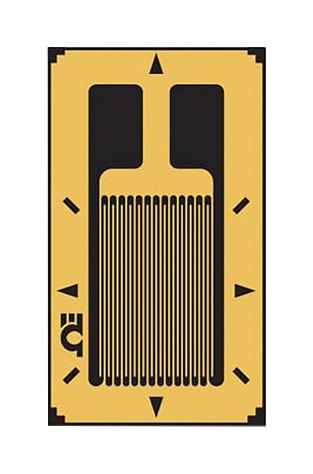

OMEGA SGD7350LY11 Linear Precision Strain Gage
The SGD Series is a highly flexible and rugged linear strain gage designed for both static and dynamic applications. Manufactured with etching constantan foil sealed in polyimide film, these gages offer excellent accuracy, mechanical strength, and broad temperature stability. Available in various patterns and sizes, including miniature and wide grid configurations, with ribbon leads or solder pads, they are suitable for high-gradient stress measurement. They can be affixed using cold or hot curing adhesives, making them ideal for experimental stress analysis and structural testing across metal and inhomogeneous materials.
OMEGA SGD7350LY11 Linear Precision Strain Gage Specifications:
- Gage Pattern: Linear various sizes, miniature and wide, with narrow or wide grid widths
- Material: Etched constantan foil sealed in polyimide film
- Measurement Range: Models with resistance options from 120 Ω to 1000 Ω
- Temperature Range: Broad temperature stability, suitable for metal and inhomogeneous materials
- Connections: Ribbon leads or solder pads using bondable terminal pads (BTP)
- Dimensions: Active gage length 3.0 mm to 13.0 mm, grid width 1.5 mm to 7.8 mm, carrier length up to 1000 mm
- Environmental Resistance: Suitable for static and dynamic applications with mechanical strength and flexibility
- Adhesion: Can be affixed with cold or hot curing adhesives
- Applications: Experimental stress analysis, structural testing, high-gradient stress measurement
Buy the Omega SGD Series – Reliable Strain Gages for Industrial Applications
Experience high-accuracy stress measurement with the Omega SGD Series linear strain gages, designed for static and dynamic applications. Their flexible design, robust construction, and broad temperature stability make them ideal for structural analysis, experimental stress testing, and high-gradient stress measurement in metals and inhomogeneous materials. Available with ribbon leads or solder pads, these durable gages can be easily affixed with cold or hot curing adhesives. Perfect for engineers and researchers seeking reliable, precise data in demanding environments.
Order your Omega SGD Series strain gage today and ensure precise, reliable stress measurement for your industrial and research projects.
