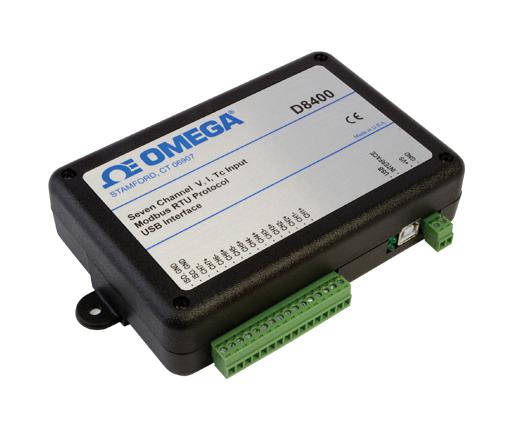

OMEGA D8400 USB Data Acquisition Module
This USB data acquisition interface module features seven channels for differential voltage, thermocouple, or current inputs. It offers a USB interface with support for Modbus RTU protocol, enabling data transfer at up to 25 conversions per second. The device performs continuous self-calibration, eliminating the need for manual adjustments. It requires a 10 to 30V DC unregulated power supply and has removable screw terminal connectors for easy wiring. Suitable for process monitoring, control, product testing, and data logging, it includes the module, manual, software CD, and a 0.9-meter USB cable, ensuring versatile industrial and laboratory applications.
OMEGA D8400 USB Data Acquisition Module Specifications:
- Number of Channels: 7 differential voltage, thermocouple, or current inputs
- Input Types: DC voltage, thermocouples (J, K, T, E, R, S, B, C), and 4-20 mA current loops
- Resolution: 16-bit ADC
- Conversion Rate: Up to 25 conversions per second
- Input Resistance: 20 MΩ for voltage, <100 Ω for current, 20 MΩ for thermocouples
- Input Protection: To 250 Vac
- Power Supply: 10-30 Vdc, unregulated
- Isolation: 500 Vac input/output
- Communication: USB interface with Modbus RTU protocol
- Operating Temperature: -25 to 70°C
- Dimensions: 102 H x 152 W x 36 mm D (4x6x1.5 inches)
- Connectors: Screw terminal barrier plug
- Self-Calibration: Continuous, no adjustments needed
- Supported Protocols: Modbus RTU over serial via USB
- Accessories: Includes USB cable, software CD, and manual
Buy the Buy BCE D8400 USB Interface Module Part Number D8400 Online
Purchase BCE D8400 USB data acquisition module online today and enhance your industrial data collection. With seven channels supporting voltage, thermocouple, and current inputs, it offers fast data transfer up to 25 conversions per second. Its support for Modbus RTU protocol facilitates easy integration with most control systems. The device performs continuous self-calibration, ensuring accurate readings without manual adjustments. Powered by 10 to 30V unregulated supply, it includes screw terminal connectors, utility software, and a USB cable for quick setup and reliable operation in process control, testing, and logging applications.
Buy BCE D8400 USB Interface Module now and experience seamless data logging with support for Modbus RTU and plug-and-play easy wiring.
Frequently Asked Questions
Where can I buy OMEGA D8400?
You can click on the BUY or RFQ button to purchase D8400 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part D8400?
You can download the D8400 datasheet or visit the OMEGA website for support.
Who is the manufacturer of D8400?
OMEGA
