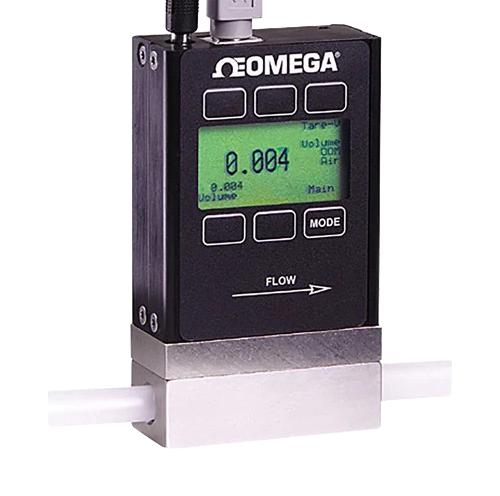

OMEGA FMA1608A Gas Flow Meter
The FMA-1600A series mass and volumetric flow meters operate on the principle of differential pressure within a laminar flow element to accurately measure gas flow rates. The device forces the gas into laminar flow conditions, where the pressure drop along the flow element relates linearly to the volumetric flow rate according to the Poiseuille equation. Integrated absolute temperature and pressure sensors adjust the readings to standard conditions for precise measurements. Features include a maximum flow rate of 20 SLM, an accuracy of ±(0.8% of reading + 0.2% of full scale), RS232 communication interface, and a 1/8 FNPT connection. The flow meter supports over 130 gas calibrations, including pure and mixed gases, with a built-in display. No warm-up time or straight pipe runs are required, and it offers a 200:1 turndown ratio. The kit includes the mass flow meter, a 24V DC power supply, a 1.8-meter cable, an 8-pin mini DIN connector, an operator’s manual, and an NIST calibration certificate.
OMEGA FMA1608A Gas Flow Meter Specifications:
- Accuracy: ±(0.8% of reading + 0.2% FS)
- Repeatability: ±0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms default, field adjustable
- Output: 0 to 5 V standard, optional 4 to 20 mA
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Maximum Pressure: 145 psig
- Flow Range: 0 to 20 SLM, 125% FS measurable
- Wetted Parts: 302/303 Stainless Steel, FKM, silicone RTV, glass reinforced PPS, aluminum, gold, brass, 430 FR stainless steel, silicon, glass
- Power Supply: 7 to 30 Vdc, 24 Vdc included
- Humidity Range: 0-100% non-condensing
- Response Time: 10 ms (default), field adjustable via RS232
- Connection: 8-pin mini DIN, optional RS485, various flow ranges available
- Calibration: Over 130 gas calibrations including pure and mixed gases
- Additional Features: No straight runs or warm-up time, supports multi-drop RS232 connection up to 26 units
Buy the Omega FMA-1600A U–Reliable Gas Flow Meters for Industrial Applications
Discover the Omega FMA-1600A series gas flow meters, delivering precise measurement for clean gases in industrial settings. Easy to install, no straight pipe runs required, with extensive calibration options. Features include differential pressure measurement, integrated temperature and pressure sensors, and RS232 communication for seamless data logging. Suitable for pure and mixed gases, these meters support multiple flow ranges up to 20 SLM, with rapid response and high accuracy. Purchase online today to optimize your gas flow monitoring with proven reliability and advanced features.
Order your Omega FMA-1608A portable mass flow meter today and enhance your gas flow measurement with accurate, versatile, and reliable performance.
