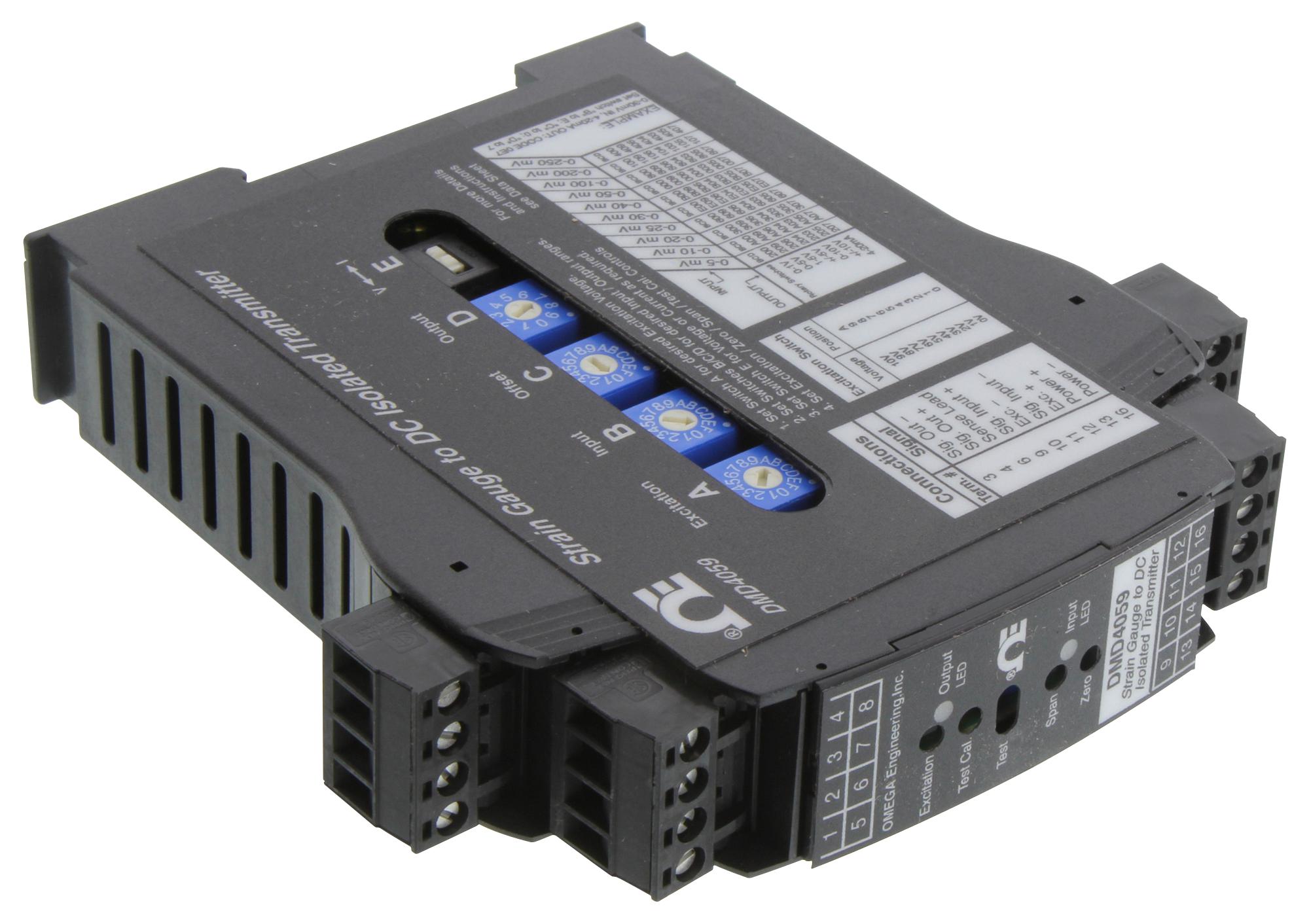

OMEGA DMD4059 Strain Gage Signal Conditioner
The DMD4059 is a versatile, field-rangeable strain gage signal conditioner designed for precise measurement and conversion of strain gauge and pressure transducer signals into linear voltage or current outputs. Suitable for load cells, tanks, melt pressure, and flow measurement, it offers full 3-way isolation, robust filtering, and adjustable excitation. With simple DIN rail mounting, fast setup, and multi-range configurations, it ensures accurate, noise-resistant data transmission. Features include zero/span adjustments, LED indicators, and a test button, making it ideal for industrial weighing, pressure, and level applications.
OMEGA DMD4059 Strain Gage Signal Conditioner Specifications:
- Input: 100 to 10,000 Q Bridges, 0.5 to 40 mV/V
- Output: 0-1 to 0-10V, +5 or +10V, or 0-2 to 0-25mA (sink or source)
- Isolation: 1200V, 3-way isolation (power to input/output, input to output)
- Operating Temp Range: -10 to 60°C (14 to 140°F)
- Power Supply: Standard 80-265 VAC, 50/60Hz or 85-300VDC; Low voltage 9-30VDC or 10-32VAC
- Dimensions: 22.5 W x 117 H x 122 mm D (0.89 x 4.62 x 4.81 inches)
- Weight: 159g (5.6 oz)
- Max Drive Capability: Four 350Ω bridges @ 10VDC
- Response Time: 70 ms
- Linearity & Noise: Better than +0.1%, <10mV rms
- Zero/Span Adjustment: +15% span via multi-turn potentiometers
- Input Resistance: 200kΩ typical
- Compliance Output: 20V at 120mA maximum
- Environmental Rating: IP40
- Connectors: Four removable 4-terminal connectors, max 14 AWG wire
Buy the Buy Omega Strain Gage Signal Conditioner Part Number DMD4059 Online
Purchase the Omega DMD4059 signal conditioner online today for precise, isolated voltage or current outputs tailored for load cells and pressure transducers. Its DIN rail mounting, adjustable excitation, and zero/span calibration make setup quick and efficient. Designed for industrial environments, it eliminates ground loops and reduces noise, ensuring accurate data transmission in weighing, tank level, and flow measurement systems. Fast setup, LED indicators, and a test button simplify configuration, providing reliable performance in demanding applications. Order now for seamless integration and dependable operation.
Buy Omega DMD4059 strain gage signal conditioner now and experience unmatched reliability and performance in industrial measurement applications.
Frequently Asked Questions
Where can I buy OMEGA DMD4059?
You can click on the BUY or RFQ button to purchase DMD4059 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DMD4059?
You can download the DMD4059 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DMD4059?
OMEGA
