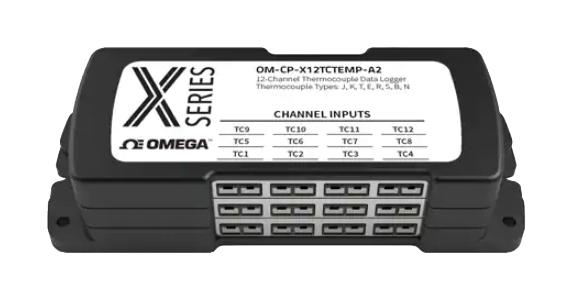

OMEGA OMCPX12TCTEMPA2 Thermocouple Data Logger
The OM-CP-TCTempX series is a 12-channel thermocouple data logger designed for precise temperature monitoring. It features a high memory capacity, allowing for up to 174,677 readings per channel, and supports a sampling rate of up to 4Hz. The device accepts various thermocouple types including J, K, T, E, R, S, B, N, and incorporates individual cold junction compensation for enhanced accuracy and response time. It stores data automatically, even if a probe is disconnected, with configurable channel names for easy identification. The logger measures temperatures from -20°C to +60°C, operates with external power or a user-replaceable 9V lithium battery that lasts about 18 months. Its compact, black anodized aluminum enclosure measures 2.70 inches by 7.25 inches by 1.68 inches, weighing approximately 580 grams. Suitable for remote or multi-point temperature monitoring, it features simple setup, minimal maintenance, and long-term deployment capabilities, compatible with Windows XP SP3, 7, 8, 10. The device includes a USB-A to Micro USB cable, universal power adapter, and calibration certificate.
OMEGA OMCPX12TCTEMPA2 Thermocouple Data Logger Specifications:
- Temperature Range: -20°C to +60°C
- Resolution: 0.01°C
- Accuracy: ±0.5°C (0°C to 50°C calibrated)
- Thermocouple Types Supported: J, K, T, E, R, S, B, N
- Thermocouple Connection: Female subminiature (SMP)
- Cold Junction Compensation: Auto, based on internal channel
- Memory: 174,677 readings per channel (16 channels enabled)
- Sampling Rate: Up to 4Hz
- Power: External supply or 9V lithium battery (lasting ~18 months)
- Dimensions: 2.70 in x 7.25 in x 1.68 in
- Weight: 580 g
- Operating Temperature: -20°C to +60°C
- Interfaces: USB-A to Micro USB, compatible with Windows XP/7/8/10
- Enclosure: Black anodized aluminum
- Certifications: CE, RoHS
- Includes: USB cable, universal power adapter, calibration certificate
Buy the Omega 12-Channel Thermocouple Data Logger – Reliable Temperature Monitoring for Industrial Applications
Order the Omega 12-Channel Thermocouple Data Logger online today and enhance your temperature monitoring capabilities. With up to 174,677 measurements per channel and a fast 4Hz sampling rate, it’s ideal for remote, industrial, or research applications. This device features individual cold junction compensation for accuracy, configurable channel names, and a durable black aluminum enclosure. The device is easy to set up, supports long-term deployment, and ships with all necessary accessories including a USB cable, power adapter, and calibration certificate. Ensure optimal temperature data collection with this reliable data logger.
Buy Omega 12-Channel Thermocouple Data Logger now and experience unmatched accuracy, high capacity, and reliable performance for industrial temperature monitoring.
Frequently Asked Questions
Where can I buy OMEGA OMCPX12TCTEMPA2?
You can click on the BUY or RFQ button to purchase OMCPX12TCTEMPA2 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OMCPX12TCTEMPA2?
You can download the OMCPX12TCTEMPA2 datasheet or visit the OMEGA website for support.
Who is the manufacturer of OMCPX12TCTEMPA2?
OMEGA
