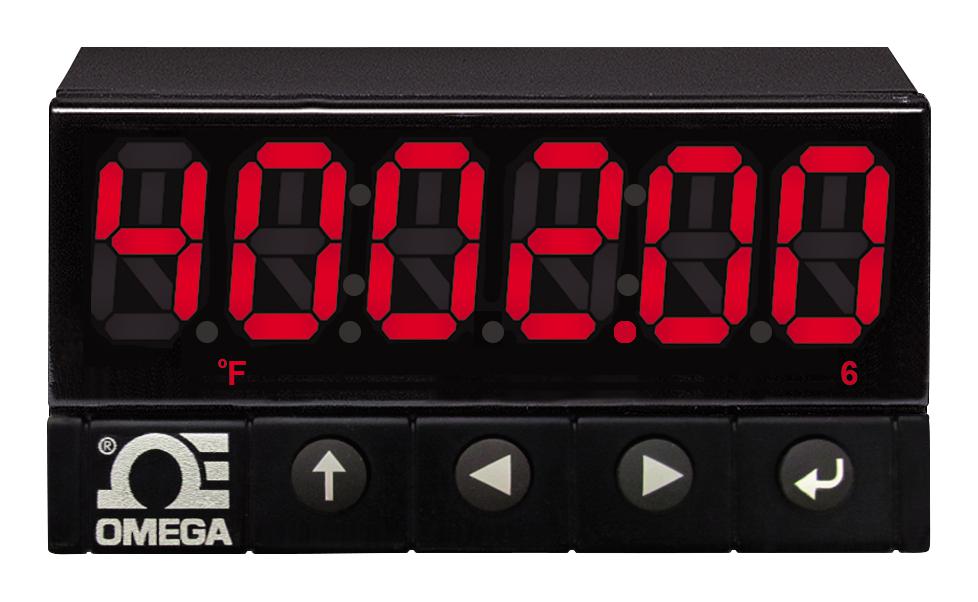

OMEGA DP8EPT Digital Panel Meter
The DP8EPT is a versatile digital panel meter designed for precise process measurement, featuring universal inputs such as thermocouples, RTDs, thermistors, voltage, and current. Its 4-digit, 9-segment LED display offers customizable colors and alarm indicators, ideal for industrial automation. Equipped with USB and optional serial and Ethernet communications, it supports easy integration into control systems. The robust NEMA 4x front bezel and wide operating temperature range ensure durability and reliable performance in demanding environments, making it suitable for temperature, voltage, and process measurement applications.
OMEGA DP8EPT Digital Panel Meter Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Thermocouple Types: J, K, T, E, R, S, B, C, N
- RTD Types: 100, 500, or 1000 Ω Pt sensors, 2-, 3-, or 4-wire, various curves
- Input Ranges: Voltage -100 to 100 mV, -1 to 1V, -10 to 10 V, scalable; Current 4-20 mA, scalable
- Display: 4-digit, 9 segment LED, programmable colors
- Dimensions: 48 H x 96 W x 127 mm D, with a 21 mm (0.83") front bezel, DIN style
- Panel Cutout: 45 mm x 92 mm
- Environmental Conditions: 0 to 50°C, 90% RH non-condensing
- Power Supply: 90 to 240 Vac +10%, or 12-36 Vdc (low voltage option); 4 W power consumption
- Communication: USB standard, optional serial (RS232/RS485) and Ethernet (TCP/IP, web server), simultaneous use supported
- Alarm Outputs: Optional single pole double throw mechanical relays (2 relays)
- Protection Class: NEMA 4x (IP65) front bezel
- Approvals: UL, cUL, CE
- Weight: 159 g (0.35 lb)
Buy the Buy Omega DP8EPT Digital Panel Meter Part Number DP8EPT Online
Purchase your Omega DP8EPT digital panel meter online today to benefit from fast delivery, expert support, and competitive pricing. Designed for precise temperature, voltage, and process measurement, this versatile device features universal inputs, a bright multi-color LED display, and multiple communication options including USB, serial, and Ethernet. Its robust NEMA 4x front bezel offers durability in harsh environments, making it ideal for industrial automation, temperature control, and process monitoring tasks. Elevate your project performance with this reliable and easy-to-use digital meter available now for quick online ordering.
Order your Omega DP8EPT Series high-precision digital panel meter today and enhance your process measurement reliability with this versatile industrial device.
