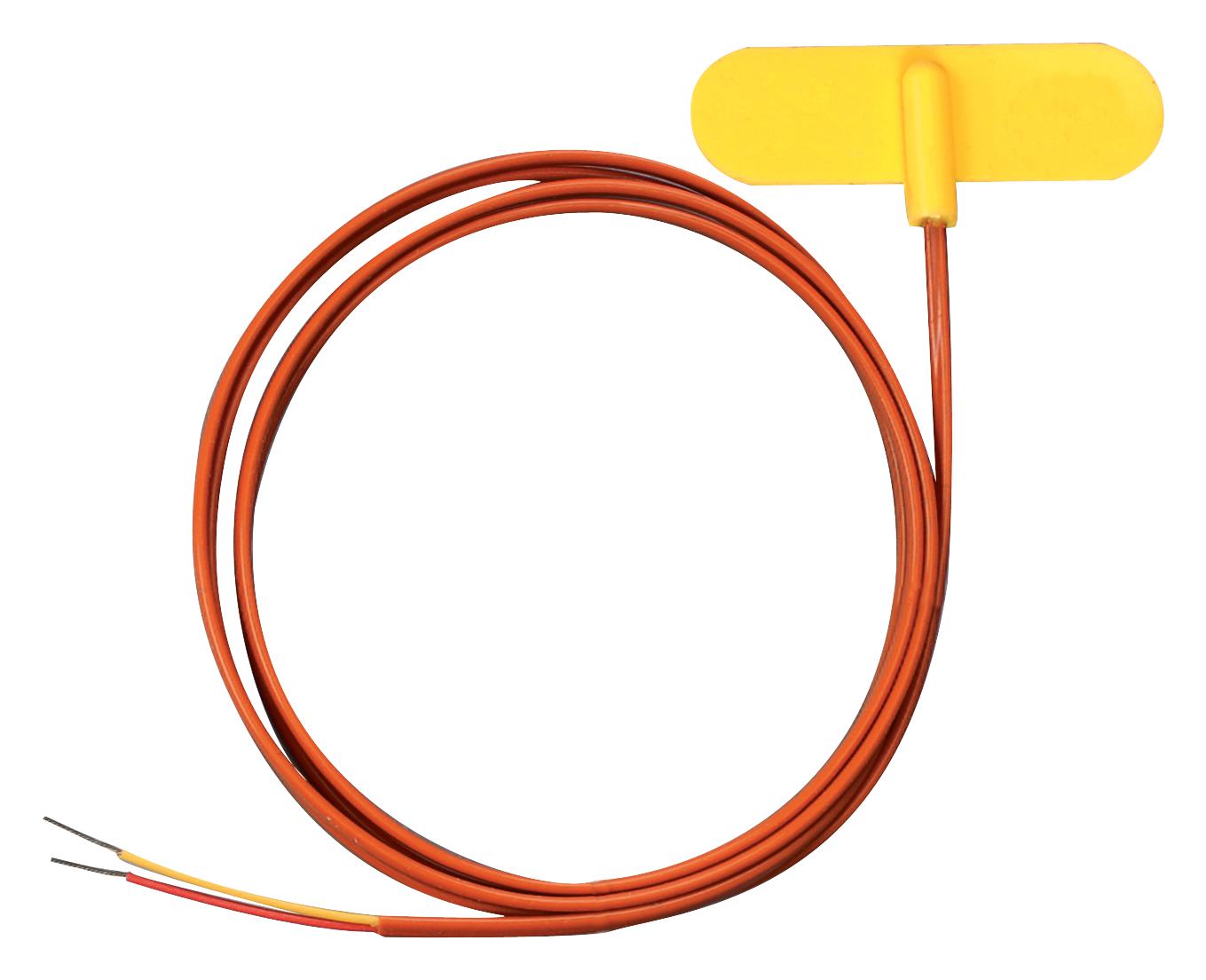

OMEGA SA2CK72 Temperature Sensor
The Self-Adhesive Thermocouples with molded silicone design are specifically engineered for installation on curved and flat surfaces, offering quick response times due to their self-adhesive foil backing. Available in two styles for versatile surface compatibility, these sensors resist chemicals and oils with a temperature range from -50°C to 200°C (-58°F to 392°F). They feature color-coded thermocouple types J, K, T, and E, with options for various lead wire lengths and custom connector configurations, making them suitable for precise temperature monitoring in industrial applications.
OMEGA SA2CK72 Temperature Sensor Specifications:
- Temperature Range: -50°C to 200°C (-58°F to 392°F)
- Sensor Size (curved): 15 x 50 mm (0.59 x 1.97 inches)
- Sensor Size (flat): 35 x 12 mm (1.38 x 0.47 inches)
- Wire: 24 AWG stranded thermocouple wire
- Lead Wire Lengths: 1 m (40 inches), 2 m (80 inches), 3 m (120 inches), custom lengths available
- Connector: Optional M8 or M12 male plugs, straight or right-angled
- Sensor Material: Molded silicone and self-adhesive aluminum foil strip
- Color Coding: J, K, T, E thermocouple types
- Mounting Style: Flat surface or curved surface design
- Chemical and oil resistant
- Response Time: Faster due to integral thermocouple bonded onto foil
- Dimensions: vary based on style; detailed sizes provided in model specifications
Buy the Generic Sensor Company SA2C-K – Reliable Temperature Sensor for Industrial Applications
Order the Self-Adhesive Thermocouple designed for flat and curved surfaces today. These sensors feature quick response times, chemical resistance, and versatile connector options suitable for industrial temperature monitoring. Available in multiple lead wire lengths and thermocouple types J, K, T, and E, they provide reliable performance across a wide temperature range from -50°C to 200°C. Easy to install with self-adhesive backing, these sensors are ideal for precise, long-lasting temperature measurement in demanding environments.
Get Generic Sensor Company SA2C-K today—built for accurate temperature measurement on curved surfaces with fast response and durable design.
