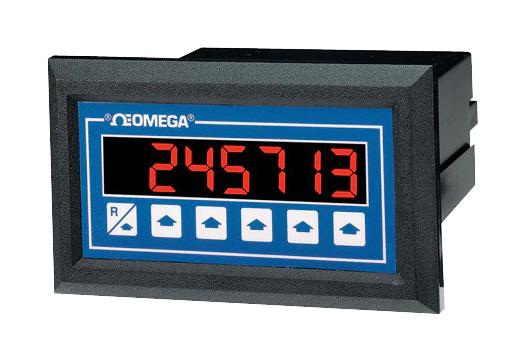

OMEGA DPF75A Ratemeter Controller
This ratemeter and batch controller features two separate 5A SPST relays for rate alarm or batching functions. It includes an analog output ranging from 4 to 20mA, proportionally related to the process rate. The device allows front-panel programming and scaling, displaying both rate and total in a single unit. It offers remote or front-panel reset options and is equipped with a NEMA 4X (IP66) rated front panel for durability in harsh environments. The package includes the ratemeter and batch controller along with an operator's manual.
OMEGA DPF75A Ratemeter Controller Specifications:
- Input Power: 110 Vac ±15% or 220 Vac ±15%, 6.5 VA
- Output Power: +12 Vdc @ 50 mA (unregulated)
- Rate Accuracy: ±0.1% of reading +1 LSD
- K Factor: Up to 5 digits
- Operating Temperature: 0 to 54°C (32 to 129°F)
- Storage Temperature: -40 to 93°C (-40 to 199°F)
- Memory: EEPROM stores data for 10 years without power
- Pulse Input: 0 to 1 Vdc (low), 4 to 30 Vdc (high), 10 kΩ impedance, up to 10 kHz
- Minimum rate indication: 0.05 Hz
- Relays: 5 A @ 240 Vac or 28 Vdc, SPST contact, NO or NC, latch or auto-recycle
- Panel Cutout: 4.5 H x 9.2 W cm (1.772 x 3.622 inches)
- Dimensions: Depth 10.3 cm (4.06 inches)
Buy the Omega DPF75 Reliable Ratemeter for Industrial Applications
Purchase the Omega DPF75 ratemeter and batch controller online today. This high-precision device offers reliable 5A relays for alarm and batching, a proportional analog output, and easy front-panel programming. Its IP66 rated NEMA 4X front ensures durability in harsh industrial settings, with features including remote and front reset options and a clear display of rate and total in various units. Effortlessly integrate this versatile sensor into your process control systems for accurate and dependable measurement.
Get Omega DPF75 today—built for precision, durability, and easy front-panel scaling in demanding industrial environments.
