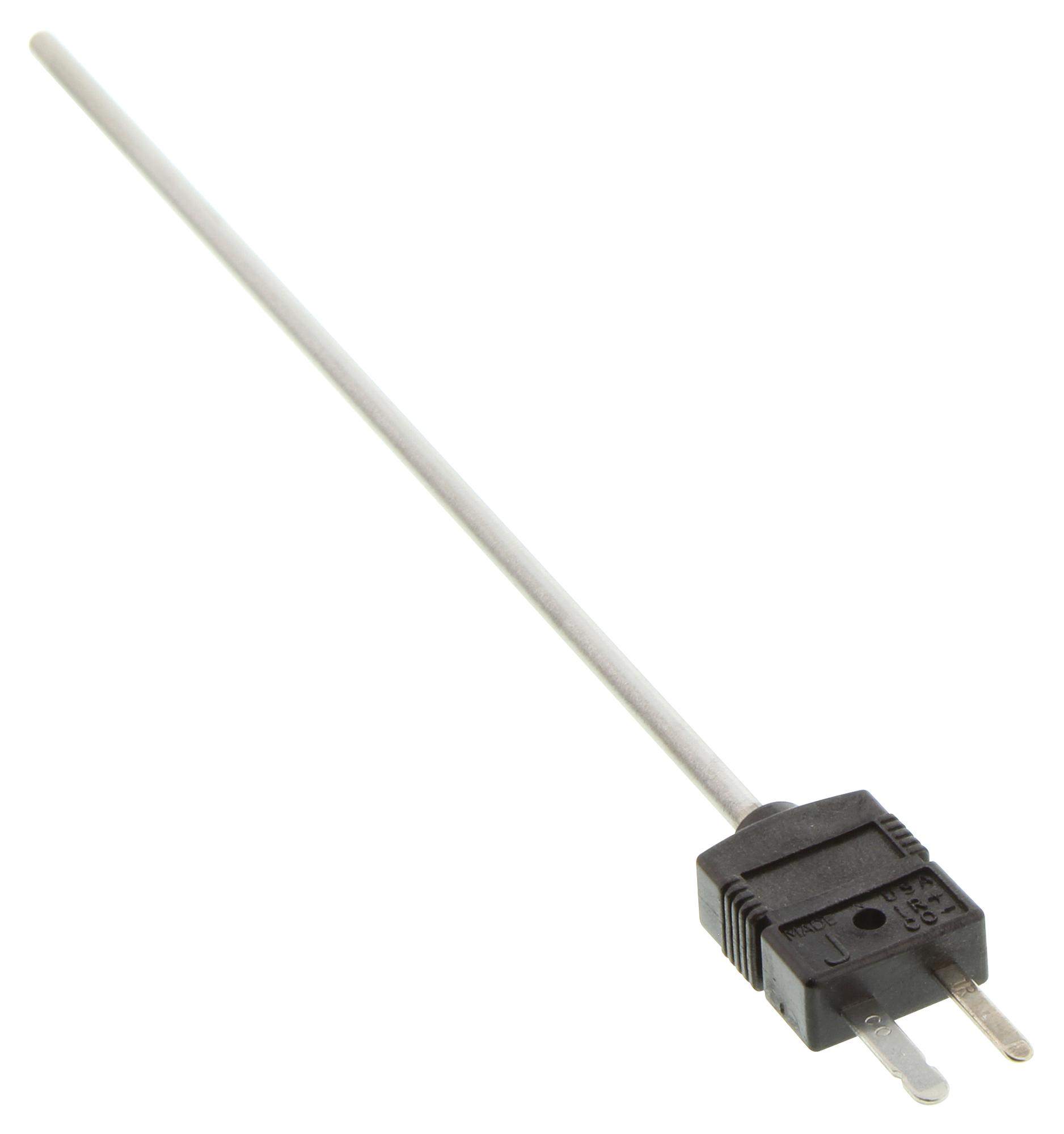

OMEGA JMQSS125G6 Miniature Thermocouple
This subminiature quick-disconnect thermocouple offers reliable temperature measurement in industrial applications. Featuring miniature connectors with glass-filled nylon bodies, it withstands temperatures up to 220°C (425°F). The probe options include Type J, K, T, E, and N, with sheath materials like 304, 310, 316, 321 stainless steel, Inconel, or Super OMEGACLAD XL. Available in standard lengths of 6 and 12 inches, with diameters from 0.010 to 0.125 inches, and configurable junction types (grounded, ungrounded, or exposed), all including mating connectors, cable clamps, and locking clips.
OMEGA JMQSS125G6 Miniature Thermocouple Specifications:
- Connector Body: Glass-filled nylon
- Rated Temperature: Up to 220°C (425°F)
- Sheath Material: 304, 310, 316, 321 stainless steel, Inconel, or Super OMEGACLAD XL
- Sheath Diameters: 0.010 to 0.125 inches
- Lengths Available: 6 and 12 inches, custom options available
- Junction Types: Grounded, ungrounded, or exposed
- Temperature Range: Suitable for industrial applications
- Includes: Mating connector, cable clamp, and locking clip
- Compatibility: Miniature connectors for precise installation
- Probe Diameter: 0.032 inches and larger have molded connector, smaller probes have removable connector
Buy the Omega Subminiature Thermocouple – Reliable Thermocouple for Industrial Applications
Purchase the reliable miniature thermocouple online today—designed for precise temperature measurement in industrial environments. Featuring quick-disconnect miniature connectors, it supports various thermocouple types including J, K, T, E, and N, with durable sheath materials like stainless steel and Inconel. Available in standard lengths of 6 and 12 inches with diameters from 0.010 to 0.125 inches, and configurable junction types (grounded, ungrounded, or exposed). Mating connectors, cable clamps, and locking clips are included for easy installation, ensuring reliable and accurate temperature monitoring.
Get Omega subminiature thermocouple today—built for precision, durability, and reliable temperature measurement in demanding environments.
Frequently Asked Questions
Where can I buy OMEGA JMQSS125G6?
You can click on the BUY or RFQ button to purchase JMQSS125G6 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part JMQSS125G6?
You can download the JMQSS125G6 datasheet or visit the OMEGA website for support.
Who is the manufacturer of JMQSS125G6?
OMEGA
