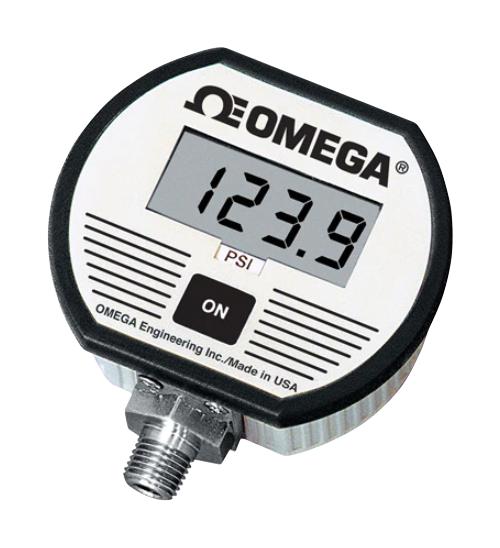

OMEGA DPG1000B200G Digital Pressure Gauge
The DPG1000 Series is a versatile industrial pressure and vacuum gauge family featuring battery, loop, or AC/DC power options. It boasts ranges from vacuum to 5000 psi, with models offering +0.25% or +0.10% accuracy. Equipped with a large 13 mm LCD display and a rugged NEMA 4X case, it’s suitable for various liquids and gases compatible with 316 stainless steel. Standard features include auto shut-off, low battery indication, and a wide operating temperature from -20°C to 85°C. It supports both gauge and absolute pressure readings, ideal for demanding industrial applications.
OMEGA DPG1000B200G Digital Pressure Gauge Specifications:
- Power: 2 AA batteries, up to 2500 hours life, auto shut-off, low battery indicator, 8-32 Vdc or 8-24 Vac power options
- Display: LCD, 13 mm digit height, 3 readings/sec, optional backlight
- Measurement Range: Vacuum to 5000 psi, with models in psi, kPa, bar, and other units
- Accuracy: +0.10% or +0.25% FSO, linearity, hysteresis, repeatability included
- Construction: Rugged aluminum or NEMA 4X case, splashproof, with 316 stainless steel fitting and wetted parts
- Environmental: Operating temperature -20°C to 85°C, storage -55°C to 95°C
- Overpressure: 2x rated pressure, Burst pressure: 4x rated pressure
- Connection: %-18 MNPT, 316 SS wetted parts, suitable for liquids and gases
- Compliance: NEMA 4X, UV stabilized polycarbonate/ABS case for NEMA 4X models
- Features: Zero/span control, test calibration, loop power (for loop models), auto shut-off (for battery models)
Buy the Industrial Series Digital Pressure: DPG1000B-200G
Order the Digital Pressure Gauge today online and experience reliable, high-accuracy pressure measurement suitable for industrial environments. This versatile gauge features multiple power options including battery, loop, or AC/DC supply, making it adaptable for portable or fixed setups. With a large LCD display and rugged NEMA 4X case, it provides excellent visibility and durability. Ideal for liquids and gases, it supports pressure ranges up to 5000 psi, ensuring precise control in demanding applications. Easy to install, operate, and calibrate, it’s the perfect addition to your pressure monitoring system.
Get Industrial Series DPG1000B-200G today—built for precision and long-lasting durability with high accuracy and rugged design.
