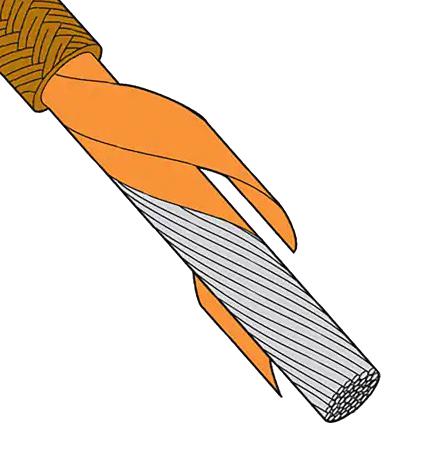

OMEGA HTMG1CU314SC100 High-Temperature Heater Wire
The HTMG series high-temperature heater hook-up wire features stranded 27% nickel-coated copper conductors with an insulated glass braid and mica tapes for applications up to 450°C. Designed for industrial and electrical heating equipment like furnaces, kilns, and heaters, it offers CSA certification and UL listing, ensuring safety and reliability. Available in various gauges and lengths, this wire provides excellent resistance to high temperatures and mechanical stress, making it suitable for demanding environments and continuous operation in the industrial sector.
OMEGA HTMG1CU314SC100 High-Temperature Heater Wire Specifications:
- Conductor Material: Stranded Nickel-Coated Copper
- Temperature Rating: 450°C (842°F)
- Insulation: Treated Glass Braid with Mica Tapes
- CSA Certified, UL Listed
- Voltage Ratings: 300V, 600V
- Gauges Available: 8, 10, 12, 14, 16, 18, 20, 22
- Nominal Outer Diameter: Ranges from 2.0 mm (0.08 inch) to 6.1 mm (0.26 inch)
- Weight: Varies from 2.5 kg/300 m (5.5 lb/1000') to 34.2 kg/300 m (75.5 lb/1000')
- Color: Natural (tan)
- Lengths: From 50 ft. to 499 ft. and sold by the foot
- Applications: Industrial heating, furnaces, kilns, heat treating
- Temperature Tolerance with mica and glass braid insulation
Buy the Omega HTMG Series – Reliable High-Temperature Heater Wire for Industrial Applications
Discover the high-performance Omega HTMG series heater wire, engineered for industrial heating up to 450°C. Featuring stranded nickel-coated copper conductors with mica and glass braid insulation, this wire guarantees durability, safety, and efficiency in high-temperature environments. Certified for safety standards and available in various gauges and lengths, it is ideal for furnaces, kilns, and heat treatment applications. Buy online today and ensure your heating equipment operates safely and reliably with premium quality wire designed for demanding industrial conditions.
Order your Omega Series HTMG-1CU-314S/C high-temperature hook-up wire today and ensure reliable performance in demanding industrial heating environments.
Frequently Asked Questions
Where can I buy OMEGA HTMG1CU314SC100?
You can click on the BUY or RFQ button to purchase HTMG1CU314SC100 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HTMG1CU314SC100?
You can download the HTMG1CU314SC100 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HTMG1CU314SC100?
OMEGA
