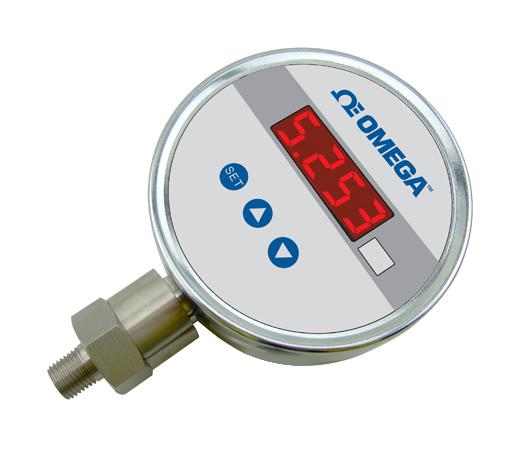

OMEGA DPG101030G Digital Pressure Gauge
The digital pressure gauge is ideal for monitoring hydraulic fluids, with high-resolution 4-digit LED display, stainless steel construction, and parameter correction. It features a measuring range from -0.1 to 100 MPa, accuracy of ±0.25% for gauge pressure and 20.5% FS for others, designed for industrial applications including hydro power, water, petroleum, and chemicals. Powered by 220VAC, it is suitable for environments up to 80°C fluid temperature and 150%–200% overload pressure. Easy to install on hydraulic pipelines, with options for high-temperature accessories and precise pressure readings.
OMEGA DPG101030G Digital Pressure Gauge Specifications:
- Measuring Range: -0.1 to 100 MPa
- Accuracy: ±0.25% for gauge pressure, 20.5% FS for others
- Overload Pressure: 150%–200%
- Power Supply: 220VAC
- Display: 4-digit LED
- Fluid Temp: 40°C to 150°C
- Operating Temp: -30°C to 80°C
- Connection: 1/4 NPT Male thread, SS316 material
- IP Rating: 1 (water resistance)
- Dimensions: Includes standard 165mm display size
- Pressure Type: Gauge pressure (G), with optional absolute and vacuum
- Stability: <0.1% FS per year
- Vibration/Shock Resistance: Suitable for high vibration environments
Buy the Omega Series Digital Pressure Gauge - Part Number DPG101030G
Order the Omega DPG101 digital pressure gauge online for accurate hydraulic fluid monitoring. Featuring a high-resolution LED display, stainless steel construction, and flexible installation options, this gauge provides reliable measurements from -0.1 to 100 MPa. Suitable for various industries such as water, petroleum, and chemicals, it offers stability, overload protection, and easy setup. Perfect for maintaining system safety and performance in demanding environments. Purchase now to ensure precise pressure monitoring with durable and easy-to-use equipment.
Get Omega DPG101 today—built for precision and long-lasting durability in industrial hydraulic systems.
Frequently Asked Questions
Where can I buy OMEGA DPG101030G?
You can click on the BUY or RFQ button to purchase DPG101030G from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG101030G?
You can download the DPG101030G datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG101030G?
OMEGA
