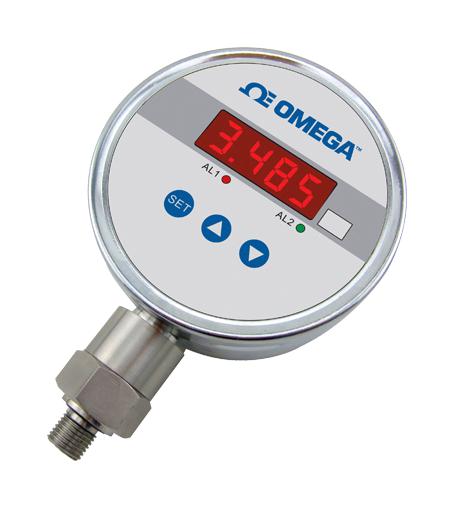

OMEGA DPG104S50KG Hydraulic Pressure Gauge
The DPG104 is a digital pressure gauge designed for monitoring hydraulic fluids across a variety of industries including hydropower, water, petroleum, chemical, and mechanical. It features a high-resolution 4-digit LED display, 100mm gauge dial, and a 4-20mA output model. The device measures pressure within a range of -0.1 to 100 MPa, with an accuracy of 0.25% for gauge pressure above 20 psi and 0.5% for other ranges. Its robust design includes a 1/4 NPT stainless steel thread, overload capacity of 150% to 200%, and operation in temperatures from -30°C to 80°C. Dual SPDT relays enable alarm functions with configurable set points, secured via a programming menu with password protection. It is suitable for direct installation on hydraulic pipelines, with optional high-temperature accessories for fluids exceeding 80°C.
OMEGA DPG104S50KG Hydraulic Pressure Gauge Specifications:
- Measuring Range: -0.1 to 100 MPa
- Accuracy: 0.25% FS for gauge > 20 psi, 0.5% FS for others
- Overload Pressure: 150% to 200%
- Pressure Type: AGID
- Power Supply: 13 to 30 VDC
- Display: 4 digits, 0.56 inch LED
- Thread Size: 1/4 NPT Male
- Thread Material: SS316 stainless steel
- Operating Temperature: -30°C to 80°C
- Fluid Temperature: up to 150°C
- Response Time: Less than 30 ms
- Humidity: Up to 90%
- Relay Output: 220V / 3A, dual SPDT relays
- Installation: Direct on hydraulic line, vertical orientation for ranges below 100 kPa
- Alarm Configuration: Normal or reverse acting, programmable via menu
- Additional Features: Filter coefficient to prevent false triggers, short-circuit-proof wiring
- Certifications: Suitable for industrial hydraulic systems, IP rated (if applicable)
Buy the Omega DPG104 – Reliable Hydraulic Pressure Gauge for Industrial Applications
Purchase the Omega DPG104 digital hydraulic pressure gauge online and enjoy accurate pressure measurement with dual alarms, LED display, and high durability. Designed for industrial hydraulic systems, this device offers easy installation directly on hydraulic lines, with programmable alarm settings, high overload capacity, and robust stainless steel connections. Its efficient digital readout provides real-time pressure data, ensuring safe and reliable operation in water, petroleum, chemical, and mechanical industries. Order now to enhance your hydraulic monitoring reliability.
Get Omega DPG104 today—built for precise hydraulic pressure monitoring in industrial environments with reliable dual alarms and digital display.
Frequently Asked Questions
Where can I buy OMEGA DPG104S50KG?
You can click on the BUY or RFQ button to purchase DPG104S50KG from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG104S50KG?
You can download the DPG104S50KG datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG104S50KG?
OMEGA
