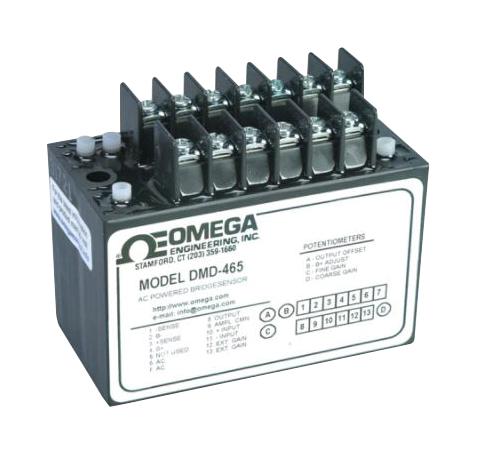

OMEGA DMD465 Signal Conditioner Module
The DMD-465 series are precision signal conditioning modules designed for strain gauges, load cells, and bridge sensors, featuring adjustable gain, offset, and various output options including voltage and 4 to 20 mA. These self-contained units support AC or DC power, with models offering bandwidths from DC to 3 Hz for standard outputs and up to 2 kHz for high-frequency responses, ensuring precise measurements in industrial applications. Compact and lightweight, they operate within 0 to 70°C, making them ideal for demanding environments.
OMEGA DMD465 Signal Conditioner Module Specifications:
- Power: 115 Vac or 220 Vac +10%, 50/60 Hz, or 10 to 36 Vdc, 0.7A @ 10V, 0.17A @ 36V
- Operating Temperature: 0 to 70°C (32 to 158°F)
- Storage Temperature: -25 to 85°C (-13 to 185°F)
- Weight: 510 g (18 oz)
- Size: 96 L x 51 W x 73 mm H (3.75 x 2 x 2.87 inches)
- Bridge Supply Excitation Voltage Range: 4 to 15 Vdc
- Current Output: Max 120 mA
- Output Noise: 0.5 mVrms (voltage models), 1 pA rms @ gain 100 (4 to 20 mA models)
- Input Impedance: 3000 MΩ
- Gain Range: 40 to 250 (up to 1000 with external resistor on DMD-465)
- Dynamic Response: DC to 3 Hz for DMD-465, DC to 2 kHz for DMD-465WB
- Common-Mode Rejection: 90 dB @ gain 40, 100 dB @ gain 250
- Input Bias Current: 30 nA
- Zero Adjust: 0 to +12 mA (for 4-20 mA models)
- Response Time: 200-300 ms to 99% of final value
Buy the Buy Industrial Signal Conditioner Part Number DMD465 Online
Enhance your industrial measurement system with the DMD-465 series signal conditioners, designed for strain gauges, load cells, and bridge sensors. These modules offer adjustable gain, offset, and support voltage or 4 to 20 mA current outputs, ensuring precise signal amplification. Compact, lightweight, and robust, they operate in temperatures up to 70°C and support both AC and DC power sources. Ideal for demanding environments, they improve measurement stability and data accuracy in manufacturing, testing, and automation applications, making them a versatile choice for engineers and technicians.
Order your Industrial Signal Conditioner DMD465 today and enhance your measurement accuracy with reliable strain gauge signal processing.
Frequently Asked Questions
Where can I buy OMEGA DMD465?
You can click on the BUY or RFQ button to purchase DMD465 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DMD465?
You can download the DMD465 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DMD465?
OMEGA
