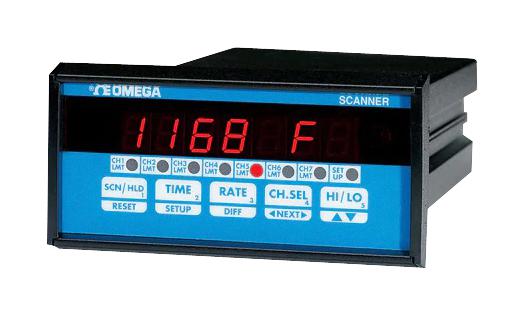

OMEGA DPS3107V1 Process Scanner
The DPS3107 series is a versatile 7-channel programmable process scanner designed for monitoring multiple analog and thermocouple inputs. It offers precise temperature, voltage, and current measurements with scalable inputs, various display modes, and built-in alarms. Suitable for industrial automation, it features independent channel programming, a clear 4-digit display, and reliable relay outputs. Power options include 120 Vac, 240 Vac, or 9-15 Vdc, with dimensions of 57 x 112 x 178 mm, ensuring easy installation in control panels. Ideal for temperature and process signal monitoring in manufacturing settings.
OMEGA DPS3107V1 Process Scanner Specifications:
- Accuracy: 0.5% reading (J, K, T, E), 1°C error for thermocouples
- Scale: 1 to 30,000
- Resolution: 1°C/°F (thermistor input: 0.1°C/°F), 0.025% FS
- Power Supply: 120 Vac, 240 Vac, or 9-15 Vdc (optional)
- Scan Rate: 2 channels/second
- Display Time per Channel: 1 to 999 seconds
- Dimensions: 57 H x 112 W x 178 mm D
- Cutout: 4 DIN 45 x 92 mm
- Weight: 1.2 kg
- Outputs: 4 or 7 relays (NO/NC), 5 Vdc driver, 0-10 V or 4-20 mA signals
- Alarm: Mechanical relay, 1 A @ 28 Vdc or 0.5 A @ 120 Vac, programmable deadband
Buy the Buy Omega DPS3107V1 Process Scanner Part Number DPS3107V1 Online
Order the Omega DPS3107V1 process scanner online today to experience reliable multi-channel monitoring. This versatile device supports temperature, voltage, and current inputs with independent programming for each channel. Its compact dimensions and multiple power options make it ideal for industrial control panels. Features include adjustable display modes, programmable alarms, and relay outputs for automation tasks. Ensure precise process measurement and control—purchase the Omega DPS3107V1 now for long-lasting durability and superior performance.
Get Omega DPS3107V1 today—designed for accurate multi-channel temperature and process control in industrial environments.
Frequently Asked Questions
Where can I buy OMEGA DPS3107V1?
You can click on the BUY or RFQ button to purchase DPS3107V1 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPS3107V1?
You can download the DPS3107V1 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPS3107V1?
OMEGA
