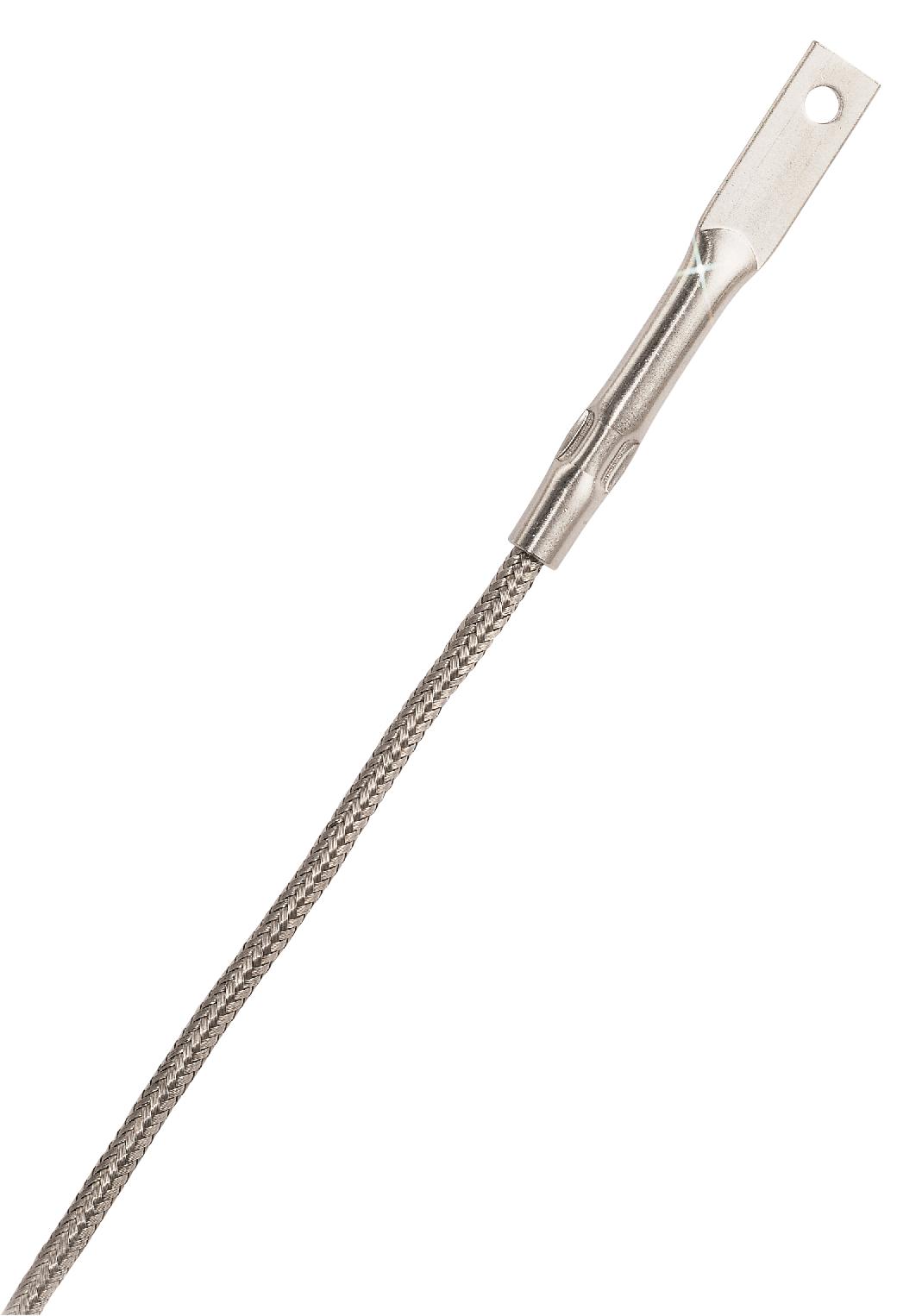

OMEGA XCIBK423 High-Temperature Thermocouple
The XCIB-K-4-2-3 from Omega is a high-temperature K-type thermocouple designed for precise measurement in industrial environments. It features a double-protected construction with abrasion-resistant Inconel overbraid and high-temperature ceramic fiber insulation, allowing continuous service up to 980°C (1800°F) and short-term operation at 1090°C (2000°F). Equipped with 20-gauge solid conductor wires insulated with braided Nextel® ceramic fiber, the rugged design ensures durability in challenging conditions. The grounded junction can be bolted or hooked to surfaces or conveyor flights, ideal for profiling ovens and furnaces, with a standard 3-foot cable and thermocouple plug.
OMEGA XCIBK423 High-Temperature Thermocouple Specifications:
- Thermocouple Type: K (Chromel-Alumel)
- Temperature Rating: continuous 980°C (1800°F), short-term 1090°C (2000°F)
- Insulation Material: braided Nextel® ceramic fiber
- Overbraiding: Inconel 600® abrasion-resistant overbraid
- Conductor Wire Gauge: 20 gage solid conductor wires
- Termination: ceramic beaded leads with compensated spade lugs
- Cable Length: 3 feet
- Protection: rugged, double-protected construction suitable for high-temperature measurements
- Grounded Junction: allows bolting or hooking for surface attachment and profiling
- Compatibility: designed for industrial oven and furnace profiling applications
- Model Number: XCIB-K-4-2-3
Buy the Omega XCIBK-4-2-3 – Reliable High-Temperature Thermocouple for Industrial Applications
Order Omega high-temperature thermocouple online now and ensure reliable temperature measurement in industrial furnaces and ovens. This durable, double-protected thermocouple with Inconel overbraid and ceramic fiber insulation offers continuous operation up to 980°C and short-term capability at 1090°C. With a rugged construction, 20-gauge solid conductors, and a 3-foot cable, it is perfect for profiling applications. Purchase online today to achieve precise temperature control and measurement in high-temperature industrial processes and secure fast delivery and excellent support.
Buy Omega XCIBK-4-2-3 thermocouple now and experience unmatched durability and precise high-temperature measurement in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA XCIBK423?
You can click on the BUY or RFQ button to purchase XCIBK423 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part XCIBK423?
You can download the XCIBK423 datasheet or visit the OMEGA website for support.
Who is the manufacturer of XCIBK423?
OMEGA
