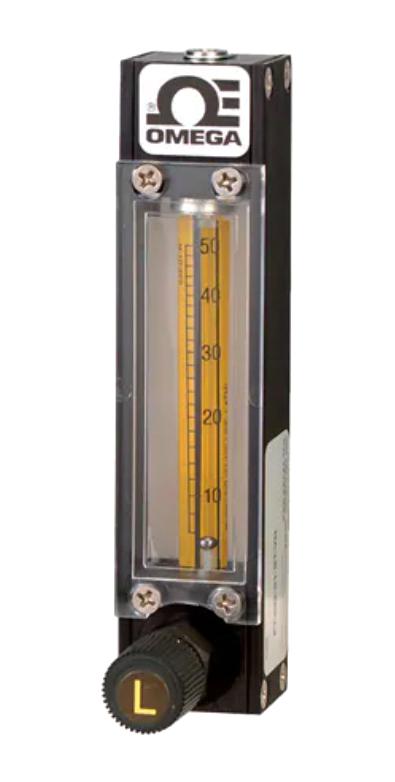

OMEGA FLDA3220ST Variable Area Flow Meter
The FLD series 65mm direct read variable area flow meter features a durable aluminum frame crafted for precise air flow measurement. It comes with a 6-turn control valve, a 316 stainless steel float for durability, and rib-guided or fluted metering tubes that provide stable, accurate readings. Equipped with a magnifier lens for easier reading, it allows for straightforward installation and quick flow tube exchange. Designed for panel mounting, this reliable device is ideal for measuring, controlling, and monitoring gas and liquid flow in laboratory, manufacturing, and industrial processes, ensuring high accuracy and durability.
OMEGA FLDA3220ST Variable Area Flow Meter Specifications:
- Flow Tubes: Heavy walled borosilicate glass
- Floats: Glass, red sapphire, 316 stainless steel, carboloy, tantalum
- Connections: 4 NPT female inlet and outlet
- Maximum Operating Pressure: 200 psig/13.8 bars
- Maximum Operating Temperature: 121°C (250°F)
- Standard Accuracy: +5% of full scale
- Repeatability: +0.25%
- Useful Flow Range: 10:1 minimum
- Construction Materials: Aluminum or 316 stainless steel frame
- Size: 65mm diameter with panel mounting capability
- Magnifier Lens: Polycarbonate with longitudinal magnification
- Flow Rate Range: 50 mL/min for air
- Inlet/Outlet Fittings: In accordance with specifications
- Built-in control valve: 6 turns for precise regulation
- Display: Direct reading with magnifying lens
- Calibration: Not NIST traceable
Buy the Omega Series FLD Flow Meter: FLDA3220ST
Purchase the Omega Series FLD Variable Area Flow Meter FLDA3220ST online today for reliable airflow measurement in laboratories, manufacturing, and industrial settings. Engineered for accurate readings, easy installation, and quick flow tube exchange, this durable flow meter features a 6-turn control valve, stainless steel float, and a magnifier lens for enhanced readability. Its robust construction with borosilicate glass and aluminum or stainless steel frame ensures longevity and precision. Elevate your process control with this high-quality, user-friendly flow measurement instrument available now for seamless online ordering.
Get Omega Series FLD flow meter FLDA3220ST today—designed for precision, durability, and easy installation in gas and liquid flow applications.
