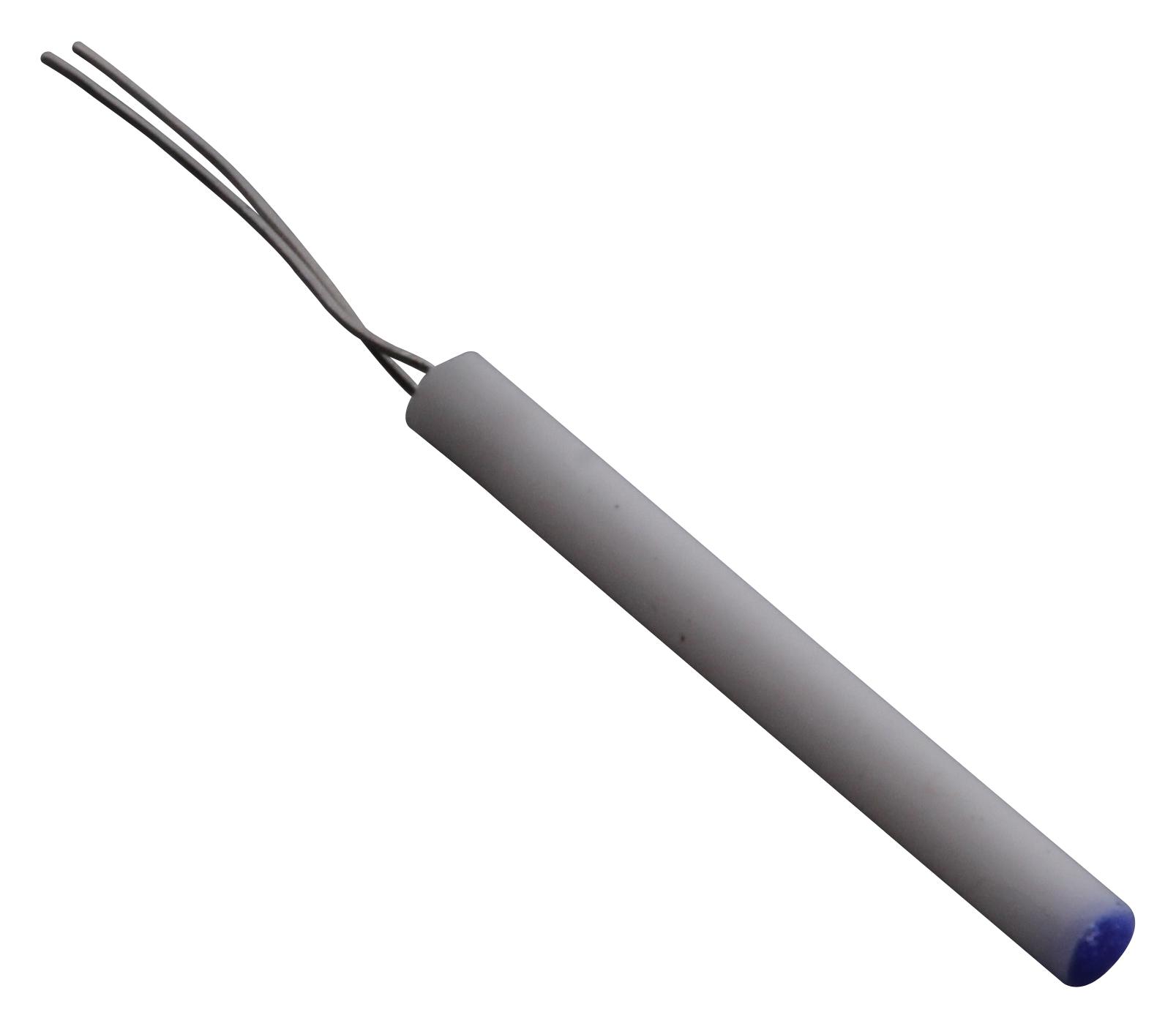

OMEGA 1PT100KN815 Platinum RTD Element
OMEGA's 1PT100KN815 is a ceramic wire-wound platinum Resistance Temperature Detector (RTD) element, known for its stability and accuracy across a wide temperature range. Constructed by winding platinum wire around a ceramic core and sealing the ends with glass, this RTD offers excellent performance in low and high-temperature environments. It's tolerant of thermal shocks and commonly used in industrial processes, HVAC systems, and laboratory equipment where precise temperature control and monitoring are critical. Available with various lead configurations, including welded insulated extension leads, to suit specific application needs.
OMEGA 1PT100KN815 Platinum RTD Element Specifications:
- Nominal Resistance: 1 x 100 ohms
- Temperature Range: -200 to 600 °C (-330 to 1110 °F)
- Self-Heating Error: 0.28 °C/mW Flowing Air
- Dimensions: 8 x 1.5 mm
- Response Time: 0.2 seconds (Flowing Water, 50%), 0.2 seconds (Moving Air, 50%)
Buy the 1PT100KN815 OMEGA Platinum RTD Element | myMectronic
Purchase the OMEGA 1PT100KN815 securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy OMEGA 1PT100KN815?
You can click on the BUY or RFQ button to purchase 1PT100KN815 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part 1PT100KN815?
You can download the 1PT100KN815 datasheet or visit the OMEGA website for support.
Who is the manufacturer of 1PT100KN815?
OMEGA
