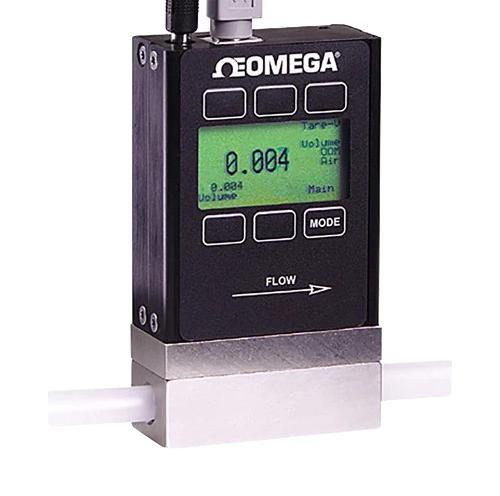

OMEGA FMA1620A Gas Flow Meter
The FMA-1600A series mass and volumetric flow meters from Omega utilize differential pressure measurement within a laminar flow element to determine gas flow rates accurately. The device features a laminar flow element that ensures streamlined flow, and incorporates temperature and pressure sensors to correct volumetric flow readings to standard conditions. It offers a maximum flow rate of 1 standard liter per minute (SLM), with an accuracy of ±(0.8% of reading + 0.2% full scale). The meter supports RS232 communication, requires no warm-up or straight pipe runs, and has a turndown ratio of 200:1. It includes a display, a 1/8 FNPT connection, and is calibrated for over 130 gases, including pure and mixed types.
OMEGA FMA1620A Gas Flow Meter Specifications:
- Accuracy: ±(0.8% of rdg + 0.2% FS)
- Repeatability: ±0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms typical, adjustable via RS232
- Output: 0 to 5 V, optional 4 to 20 mA
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Maximum Pressure: 145 psig
- Flow Rate Range: 0 to 1 SLM (standard liters per minute)
- Cable Connection: 8-pin mini DIN
- Wetted parts: 302 and 303 stainless steel, FKM, silicone RTV, glass-reinforced PPS
- Response Time: 10 ms default, factory adjustable
- Venting: To atmosphere on larger models
- Calibration: Over 130 gases including pure & mixed gases
- Standard Connection: 1/8 FNPT
- Power Supply: 7-30 VDC
- Humility Range: 0-100%, non-condensing
Buy the Buy Omega Gas Flow Meter Part Number FMA1620A Online
Purchase the Omega FMA-1620A gas flow meter online today for precise mass and volumetric gas flow measurements. This device seamlessly integrates differential pressure sensors, temperature, and pressure corrections, supporting over 130 gases, including pure and mixed types. Easy RS232 communication allows real-time monitoring, and calibration is done at ambient conditions for accuracy. No straight pipe runs or warm-up time needed, making installation quick and efficient. Ideal for laboratory, industrial, and process automation applications with broad flow range capabilities.
Buy Omega FMA-1620A gas flow meter now and experience unmatched reliability, precision, and versatility in gas flow measurement and calibration.
