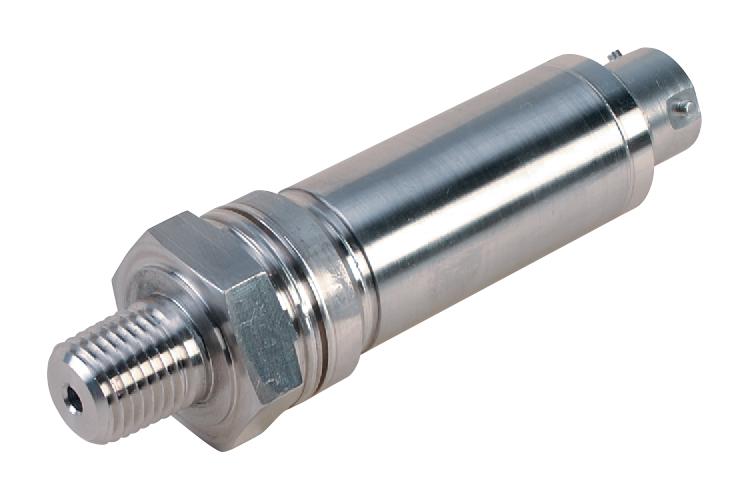

OMEGA PX42950KG5V Pressure Transducer
The PX429-50KG5V is a high-accuracy, solid-state pressure transducer designed for industrial, aerospace, and automotive applications. Utilizing advanced piezoresistive silicon wafer technology, it offers exceptional stability and long-term accuracy. The transducer provides multiple output options including 0-5 Vdc, 4-20 mA, and mV/V, suitable for a range of pressure measurements from 10 in-H2O to 5000 psi. Its rugged stainless steel wetted parts and broad temperature compensation from -29°C to 85°C ensure reliable performance under demanding conditions. Certified for EMC and RoHS compliance, it includes a 5-point NIST traceable calibration to guarantee precision.
OMEGA PX42950KG5V Pressure Transducer Specifications:
- Output Options: 0-5 Vdc, 0-10 Vdc, 4-20 mA, mV/V
- Pressure Ranges: 10 in-H2O to 5000 psi, 25 mbar to 345 bar
- Accuracy: +0.08% BSL, includes linearity, hysteresis, and repeatability
- Temperature Range: -29°C to 85°C (-20°F to 185°F)
- Calibration: 5-point NIST traceable calibration included
- Construction: Rugged stainless steel wetted parts
- Response Time: <1 ms
- Shock Resistance: 50 g, 11 ms half sine
- Vibration: 5-2000 Hz, 30 min cycle
- Sealing: IP67 rated
- Electrical Protection: EMC, reverse polarity, power fluctuation
- Pressure Overload Limits: Up to 10 times span depending on range
Buy the Buy Omega Pressure Transducer Part Number PX42950KG5V Online
Order the Omega PX429-50KG5V pressure transducer today online and experience high accuracy and rugged performance. Designed for industrial, aerospace, and automotive applications, this transducer features multiple output options including 0-5 Vdc, 4-20 mA, and mV/V, enabling versatile integration. Its broad temperature compensation from -29°C to 85°C ensures reliable results in demanding environments. With stainless steel wetted parts, excellent shock and vibration resistance, and a 5-point NIST traceable calibration, it guarantees consistent precision and long-term stability. Purchase now for fast delivery and trusted performance.
Get Omega PX42950KG5V today—built for precision, durability, and reliable industrial pressure measurement with broad temperature performance.
Frequently Asked Questions
Where can I buy OMEGA PX42950KG5V?
You can click on the BUY or RFQ button to purchase PX42950KG5V from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX42950KG5V?
You can download the PX42950KG5V datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX42950KG5V?
OMEGA
