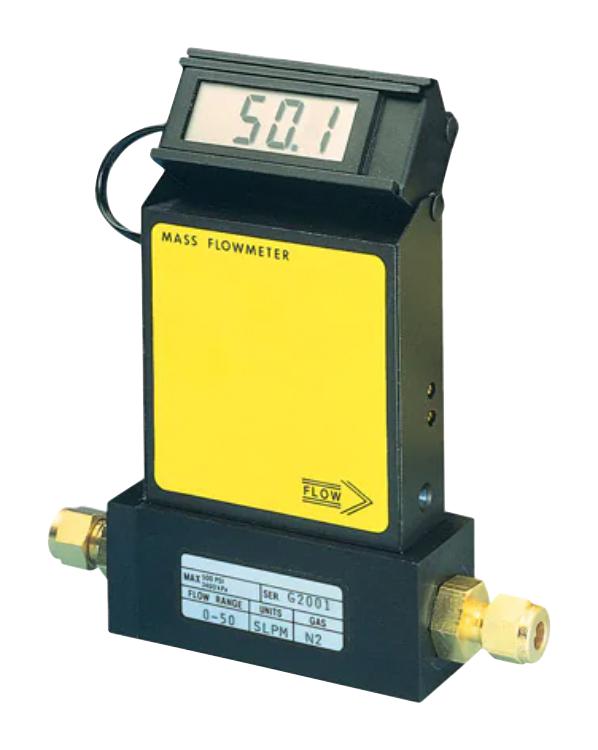

OMEGA FMA1806A Gas Mass Flow Meter

The FMA1806A series digital mass flow meter provides accurate measurement of gas flow rates from 10 SCCM to 100 SLM, ideal for monitoring clean gases in various applications. Constructed with corrosion-resistant materials, it features a tiltable LCD display for easy reading, and is calibrated for nitrogen or other gases with optional custom calibration. Its compact, lightweight design ensures excellent performance in laboratory or field settings, with electronic outputs for remote monitoring, quick response time, and high reliability. Suitable for process control, research, and gas sampling tasks, it offers excellent precision and durability.

Authorized Distributors
Source:DigiKey
Part No:FMA1806A
Stock:0
Inv Date:06-12-2026
Price: Unit price: $1235.87
Buy/RFQ:

OMEGA FMA1806A Gas Mass Flow Meter Specifications:

  • Accuracy: +1% of full scale, includes linearity, within 15 to 25°C and 5 to 60 psia
  • Repeatability: +0.5% of full scale
  • Temperature Coefficient: 0.15% of full scale per °C or better
  • Pressure Coefficient: 0.01% of full scale per psi
  • Maximum Pressure Drop: 14 to 100 psid depending on model
  • Response Time: 800 milliseconds; typical 2 seconds to within +2% over 25-100% of full scale
  • Maximum Gas Pressure: 500 psig, up to 1000 psig for ranges up to 100 SLM
  • Gas and Ambient Temperature Range: 0 to 50°C
  • Leak Integrity: 1 x 10^-8 std cc/sec helium maximum
  • Materials in Fluid Contact: Anodized aluminum, 316 stainless steel, brass, FKM O-rings
  • Output Signal: 0-5 Vdc or 4-20 mA with specified load resistances
  • Transducer Power: 12 Vdc @ 200 mA
  • Dimensions: Approx. 15.9 cm (6.27 inches) length, 3.2 cm (1.25 inches) width, 4.4 cm (1.75 inches) height
  • Weight: 1.1 kg (2.5 lbs)
  • Compliance: EN55011 class 1, class B; EN50082-1

Buy the Buy Economical Gas Mass Flow Meter Part Number FMA1806A Online

Purchase the Economical Gas Mass Flow Meter FMA1806A online for precise, reliable gas flow measurement from 10 SCCM to 100 SLM. Equipped with a tiltable LCD display for easy reading, it features corrosion-resistant construction, electronic outputs for remote monitoring, and NIST traceable calibration. Suitable for laboratory and industrial environments, it ensures high accuracy with +1% of full scale, fast response time, and durable materials. Simplify your gas analysis and process control tasks by ordering the FMA1806A today for improved efficiency and confidence in your measurements.

Get Economical Gas Mass Flow Meter FMA1806A today—designed for high accuracy and corrosion resistance in gas flow measurement.
