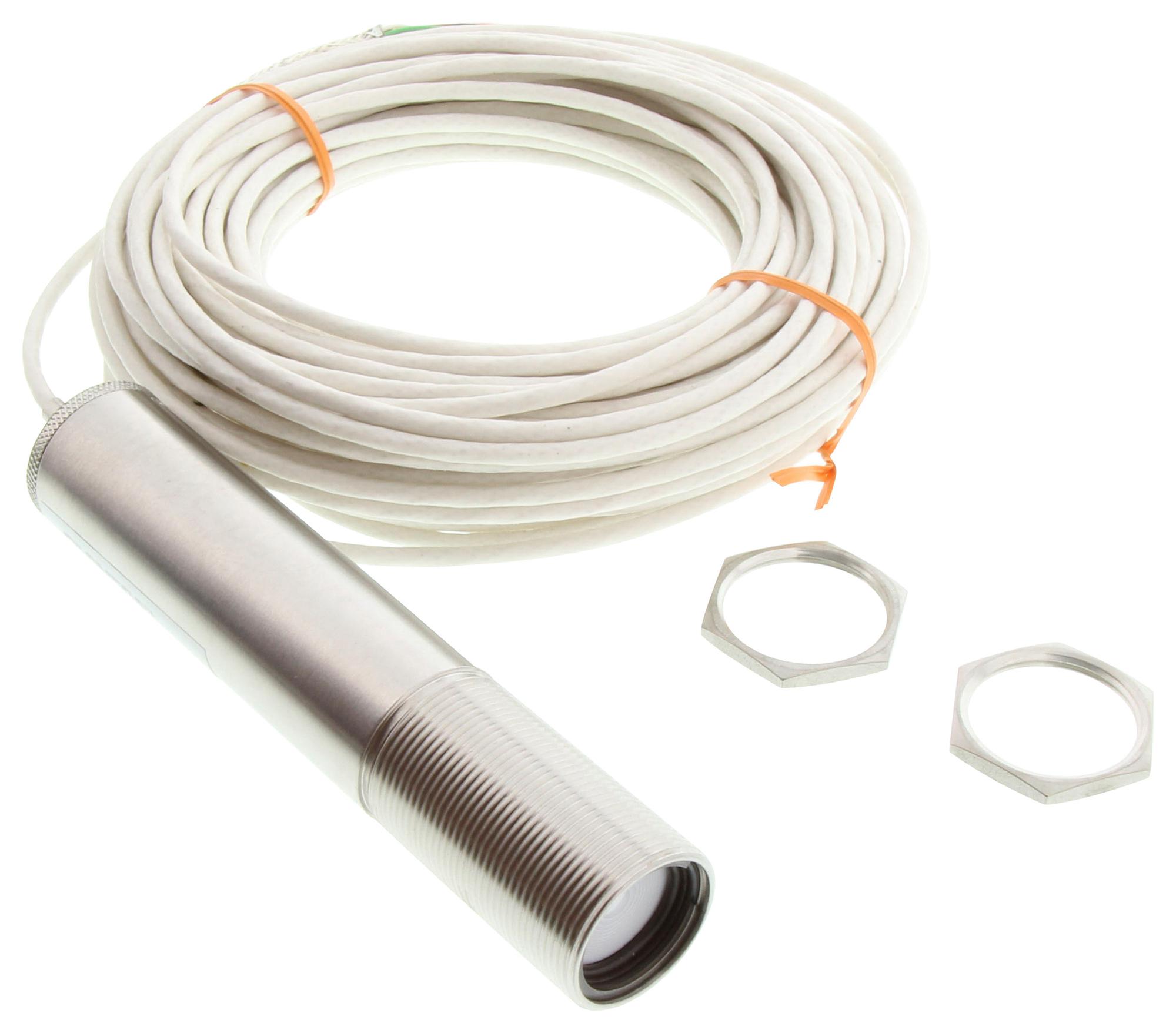

OMEGA OS137A1MA45FT Infrared Temperature Sensor
The Omega infrared temperature sensor and transmitter model OS137A offers precise non-contact temperature measurement with adjustable emissivity, multiple output options, and a compact stainless steel housing. Featuring three temperature ranges from 0 to 100°C, -18 to 260°C, and -18 to 538°C, it provides accurate readings with 3% accuracy, 150 ms response time, and a 10:1 field of view. Ideal for industrial applications, it operates in harsh environments, offers adjustable alarm setpoints, and includes mounting accessories for easy setup.
OMEGA OS137A1MA45FT Infrared Temperature Sensor Specifications:
- Temperature Ranges: 0 to 100°C, -18 to 260°C, -18 to 538°C
- Accuracy: 3% of Rdg or 4.4°C (8°F) for lower ranges, 3% of Rdg or 5.5°C (10°F) for high range
- Repeatability: 1% rdg or 2°F (1°C)
- Spectral Response: 5.5 to 14 microns
- Emissivity: 0.5 to 1.0, adjustable via a dial
- Response Time: 150 milliseconds
- Field of View: 10 to 1
- Power Supply: 12 to 24 VDC @ 50 mA
- Housing: Stainless steel, NEMA 4/IP65 rated
- Operating Temperature: 0 to 70°C without cooling, up to 110°C with air cooling
- Dimensions: 25.4 mm OD x 127 mm length
- Laser Sighting: Wavelength 630-670 nm, operating distance up to 9.1 m, power less than 1 mW
Buy the Buy Omega Infrared Temperature Sensor Part Number OS137A Online
Enhance your industrial temperature measurement with the Omega SeriesOS137A infrared sensor. Compact and durable, it provides accurate readings across three temperature ranges. Its adjustable emissivity, various analog outputs including 4-20 mA, 0-5 V, and 0-10 V, and easy-to-use alarm setpoints make it ideal for process control, manufacturing, and quality assurance. Easy installation with mounting accessories and reliable stainless steel housing ensure longevity and performance in harsh environments. Order online now for fast delivery and seamless integration into your system.
Order your Omega SeriesOS137A infrared temperature sensor today and ensure precise non-contact measurement with adjustable features and robust housing.
