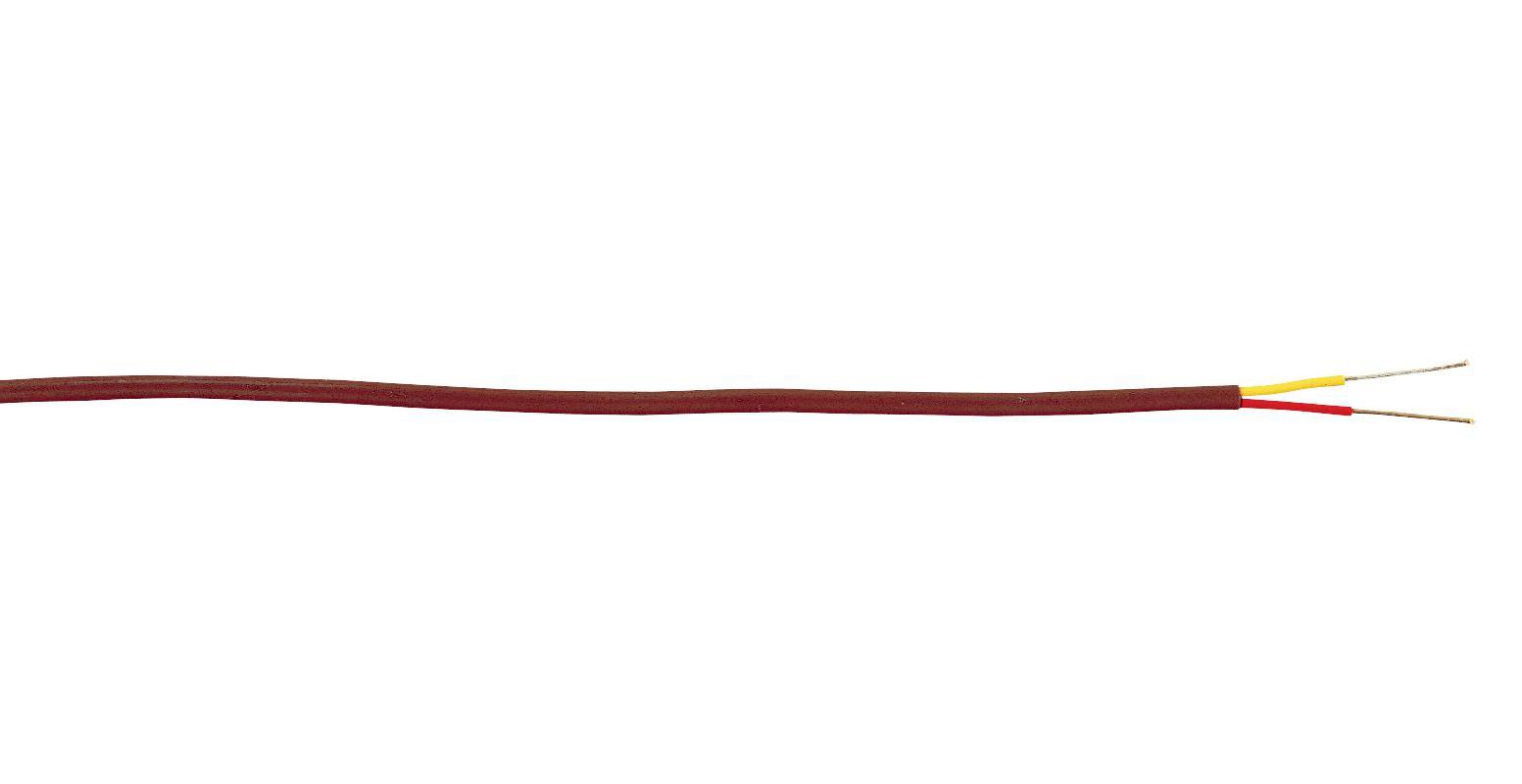

OMEGA GGK20SLE1000 Thermocouple Wire
This duplex insulated thermocouple wire features chrome-aledega insulation, ANSI Type K color coding, and is manufactured without reprocessed materials. It offers high temperature resistance up to 1090°C, with various sizes and insulation types suitable for precise temperature measurement and industrial process monitoring. The wire is available with ceramic, silica, glass braid, Kapton, PFA, and FEP insulation options, each designed for specific temperature ranges, mechanical durability, and chemical resistance. Ideal for demanding industrial environments requiring reliable, accurate thermocouple connections with excellent thermal stability.
OMEGA GGK20SLE1000 Thermocouple Wire Specifications:
- Insulation Material: Chrome-aledega, ceramic, silica, glass braid, Kapton, PFA, FEP
- Temperature Rating: Up to 1090°C (2000°F) depending on insulation
- Conductor: Solid, available in sizes from 14 to 24 AWG
- Dimensions: Varies per model, typical cross-sectional size ranges from 0.9 x 1.3 mm to 3.6 x 5.0 mm
- Color Code: Positive wire yellow, negative wire red, overall brown or trace thread
- Max Operating Temperature: 1090°C for certain sizes with ceramic or silica insulation
- Weight: Ranges with spool size and wire gauge, approximate weights are provided
- Certifications: Suitable for high-accuracy temperature measurement in industrial settings
Buy the Omega GGK20SLE1000 – Reliable Thermocouple for Industrial Applications
Purchase Omega GGK20SLE1000 thermocouple wire online today to ensure accurate temperature measurements in industrial processes. With high-temperature resistance up to 1090°C and available insulation options such as ceramic, PFA, and silica, this duplex insulated wire provides exceptional durability, chemical resistance, and thermal stability. It features ANSI Type K color coding for easy identification and is suitable for high-precision applications. Order now to benefit from fast shipping, quality assurance, and the dependable performance that Omega delivers for industrial temperature sensing needs.
Get Omega GGK20SLE1000 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA GGK20SLE1000?
You can click on the BUY or RFQ button to purchase GGK20SLE1000 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part GGK20SLE1000?
You can download the GGK20SLE1000 datasheet or visit the OMEGA website for support.
Who is the manufacturer of GGK20SLE1000?
OMEGA
