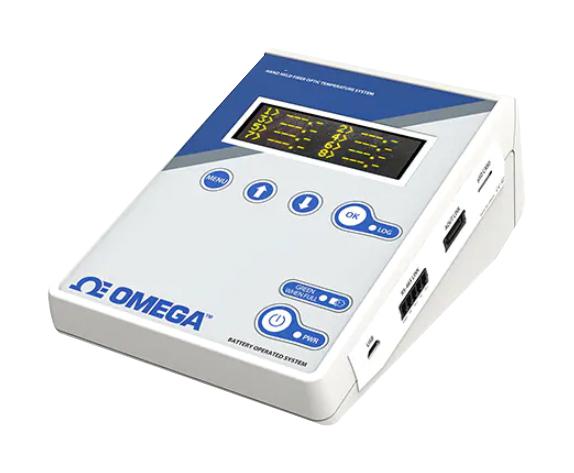

OMEGA FOML2012 Fiber Optic Temperature Monitor
The FOM-series fiber optic monitors are compact, reliable devices designed for precise temperature measurement using fiber optic sensors. They feature a measurement range from -80°C to +300°C with an accuracy of ±1.0°C, or ±0.2°C in relative temperature. These monitors support up to 8 channels and include logging capabilities via USB, with free software offering a display resolution of 0.1°C. They connect with fiber optic sensors through ST connectors, providing fast response times of approximately 0.2 to 0.5 seconds per channel. The system can be expanded with microSD memory (card not included), and offers configurable outputs of 0-10V or 4-20mA using an FOM-AOUT accessory. Connectivity options include RS-485 and USB with Modbus protocol, powered by a 5V DC supply. An optional case accessory is available for ease of storage and transport. Common applications span transformer factories, chemical processing, medical equipment testing (MRI, PET Scan, NMR), microwave heating, food and beverage processing, electric vehicle and battery testing, and wood drying.
OMEGA FOML2012 Fiber Optic Temperature Monitor Specifications:
- Process Temperature Range: -80 to 300°C (-112 to 572°F)
- Ambient Operating Temperature: -40°C to 55°C, non-condensing
- Accuracy: ±1.0°C (±0.2°C in relative temperature)
- Response Time: 0.2 to 0.5 seconds per channel
- Number of Channels: 2 to 8
- Display Resolution: 0.1°C
- Connection Type: ST Connector
- Supply Voltage: 5 VDC
- Memory: MicroSD slot (up to 2 TB)
- Dimensions: 4.9 x 7.1 x 2.7 inches
- Weight: 450 g (FOM-L201), 600 g (FOM-H201)
- Logging: USB, MicroSD expandable memory
- Outputs: Configurable 0-10 V / 4-20 mA with accessory
- Communication: RS-485, USB with Modbus protocol
- Response Time: 0.2-0.5 seconds
- Probe Compatibility: Omega fiber optic probes, GaAs probes
- Power: 5V DC
- Additional features: Free software, portable case option
Buy the Buy Omega Fiber Optic Monitor Part Number FOML2012 Online
Experience precise temperature measurement with the Omega Fiber Optic Temperature Monitor. Supporting up to 8 channels, it offers fast response times and USB data logging. Its compact design fits easily into various environments, from chemical processing to medical testing. The system’s configurable outputs and extensive connectivity options, including RS-485 and USB with Modbus, make it versatile for industrial automation. Expandable with MicroSD memory, it ensures long-term data storage. Perfect for applications demanding reliability, accuracy, and quick setup—order online today for superior temperature monitoring.
Get Omega fiber optic monitor FOML2012 today—designed for accurate temperature measurement, fast response, and reliable data logging in industrial applications.
