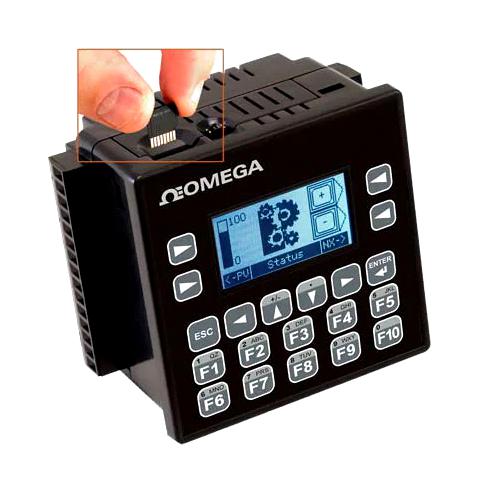

OMEGA HEXE102 Programmable Logic Controller
This programmable logic controller combined with an operator interface features a graphical display, built-in I/O, networking capabilities, and removable data storage. It operates with the industry-recognized Cscape™ software package. The device includes a 128 x 64 pixel daylight-readable touchscreen, a 20-key keypad, built-in 1/0 with removable terminal blocks, a MicroSD™ card slot supporting up to 2 GB for data logging, 12 digital inputs (including 4 high-speed counters), 6 relay outputs rated at 3A, and 4 configurable analog inputs (0-10V or 4-20mA). Its compact size and integrated features make it ideal for automation and machine control applications.
OMEGA HEXE102 Programmable Logic Controller Specifications:
- Display: 128 x 64 pixels, daylight readable LCD touchscreen
- Keys: 20 (including 10 function keys and 4 soft keys)
- Controller Memory: 256 KB ladder logic
- Logic Scan Rate: 1.2 mS/K
- MicroSD™ card slot supporting up to 2 GB
- Digital Inputs: 12 (including 4 high-speed counters, 10 KHz)
- Relay Outputs: 6, rated at 3A
- Analog Inputs: 4, selectable 0-10V or 4-20mA
- Analog Outputs: 2, 0-10V or 4-20mA
- Serial Ports: 2 (RS232/RS485)
- Networking: Ethernet (optional), CsCAN network standard
- Power Supply: Compatible with 12 VDC
- Physical Dimensions: 95.1 mm x 95.1 mm x 63.9 mm
- Weight: 0.354 kg
- Operating Environment: 0 to 50°C
- Certification: NEMA 4X (IP66) equivalent for washdown resistance
Buy the Omega HE-XE102 – Reliable PLC Controller for Industrial Applications
Discover the advanced capabilities of the Omega HE-XE102 PLC controller, featuring a graphical touchscreen, built-in I/O, Ethernet connectivity, and removable MicroSD storage. This compact, robust device is designed for industrial automation, providing flexible digital and analog inputs, high-speed counting, relay outputs, and easy data logging. With user-friendly programming via Cscape software, its compact size makes it ideal for OEM, machine control, and process monitoring environments. Purchase online today to enhance your automation system with a trusted, reliable control solution.
Order your Omega HE-XE102 all-in-one PLC and HMI controller today and elevate your automation projects with dependable, integrated control solutions.
Frequently Asked Questions
Where can I buy OMEGA HEXE102?
You can click on the BUY or RFQ button to purchase HEXE102 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HEXE102?
You can download the HEXE102 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HEXE102?
OMEGA
