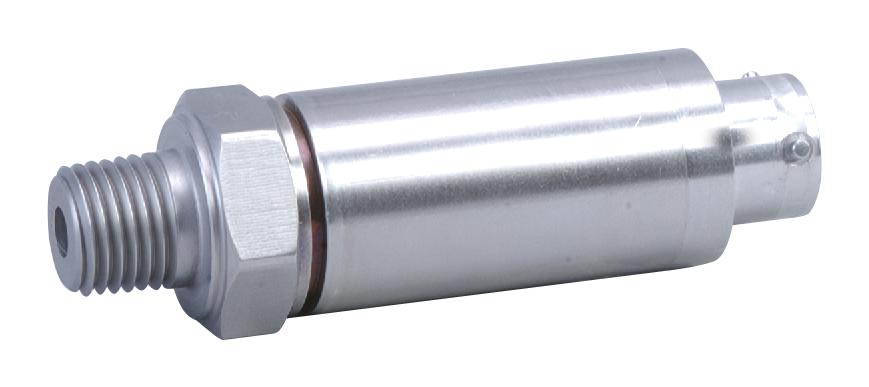

OMEGA PX329100GI Pressure Transducer
The pressure transducer features stainless steel construction and high-precision silicon technology for reliable measurement in industrial environments. It supports a wide range of pressure measurements from 0-1 to 0-10,000 psi, with outputs including 100 mV, 0-5 V, and 4-20 mA. Designed for durability and low drift, it is suitable for gage, absolute, and vacuum pressure applications. Its rugged solid-state design offers IP65 protection, making it ideal for demanding industrial uses with quick response time and long-term stability.
OMEGA PX329100GI Pressure Transducer Specifications:
- Construction: All stainless steel
- Pressure Range: 0-1 to 0-10,000 psi
- Outputs: 100 mV, 0-5 V, 4-20 mA
- Accuracy: 0.25% static
- Protection: IP65
- Temperature Range: -40 to 85°C
- Response Time: <1 ms
- Weight: 154 g
- Vibration: +20 g
- Shock: 50 g, 11 ms
- Pressure Port Material: 316 SS (up to 1000 psia), 17-4 PH SS (above 1000 psia)
- Calibration: NIST traceable 5-point
- Resistance: >1 MΩ
- Pressure Overload: 3x rated (up to 1000 psia), 5x (above 1000 psia)
Buy the Omega PX329100GI – Reliable Pressure Transducer for Industrial Applications
Order the Omega PX329100GI pressure transducer online today and enhance your industrial measurement accuracy. Featuring stainless steel construction, high stability, and versatile outputs, it is suitable for gage, absolute, and vacuum applications up to 10,000 psi. Equipped with IP65 protection, quick response, and long-term stability, this rugged transducer ensures reliable performance even in harsh environments. Easily connect via vented cables or standard connectors, and benefit from NIST-traceable calibration for precise and consistent readings in your industrial processes.
Buy Omega PX329100GI now and experience unmatched reliability and performance in demanding industrial pressure measurement.
Frequently Asked Questions
Where can I buy OMEGA PX329100GI?
You can click on the BUY or RFQ button to purchase PX329100GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX329100GI?
You can download the PX329100GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX329100GI?
OMEGA
