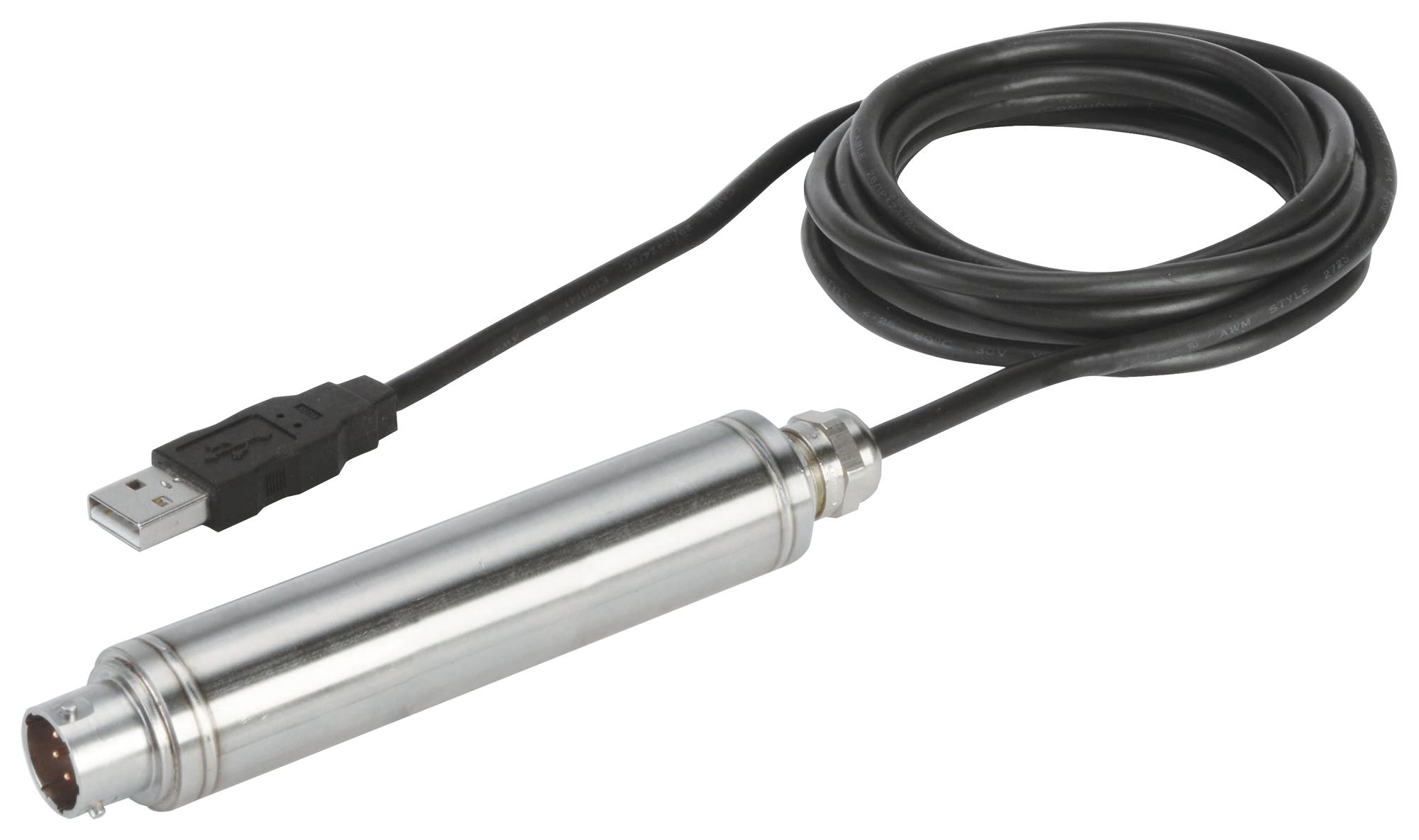

OMEGA INUSBH Signal Conditioner
The IN-USBH is a field calibratable USB in-line signal conditioner designed for mV/V pressure or load transducers. It converts analog signals into digital data accessible via a USB connection, making it ideal for real-time monitoring, data logging, and chart recording applications. The device provides regulated excitation at 4.1 VDC, accurate up to 1000 Hz sampling rates, and fits within harsh environments with its stainless steel case. Free Omega software enhances data analysis, visualization, and calibration, supporting wide temperature ranges from -40°C to 80°C and offering high resolution and stability.
OMEGA INUSBH Signal Conditioner Specifications:
- Resolution: Up to 5.5 significant figures
- Isolation: 2 MQ @ 50 Vdc case to output terminations
- Thermal Error: 0.001% FSO/°C
- Linearity Error: 0.001% FSO
- A to D Conversion: 24 bit
- Bandwidth: Up to 1000 updates per second typical
- Operating Temperature Range: -40 to 80°C
- Physical Dimensions: stainless steel case, mounting bracket included
- Cable Length: 2 meters (6 feet)
- Connection: PTIH-10-6P 6-pin twist-lock male connector, mating with PTO6F10-6S
- Input Signal: Bridge sensitivity 1-400 mV/V, resistance 350Ω to 15,000Ω
- Excitation Voltage: 4.1 Vdc
- Weight: approximately 200 g
Buy the Omega IN-USBH – Reliable Signal Converter for Industrial Applications
Experience accurate, real-time data logging and calibration with the Omega IN-USBH, a high-performance USB in-line signal conditioner. Suitable for pressure and load transducers, it features adjustable sampling rates up to 1000 Hz, ensuring precise measurements for demanding industrial applications. The device includes free Omega software for charting, logging, and analyzing data, making it ideal for dynamic and static monitoring. Its stainless steel case and mounting bracket ensure durability in harsh environments. Compatibility with various transducers and clear connection diagrams make setup straightforward. Invest in this reliable signal conditioner to optimize your measurement systems today.
Order your Omega IN-USBH USB in-line signal conditioner today and enhance your pressure and load measurement projects with dependable digital output and software support.
