OMEGA FLDA3203ST Gas Flow Meter
The flow meter is a precision instrument designed for direct read flow rates of gases like air, water, N2, H2, CO2, Ar, He, and O2. Featuring rib-guided or fluted metering tubes, a magnifier lens for enhanced reading resolution, and interchangeable flow tubes and floats, it offers ease of installation and panel mounting. Suitable for laboratory, manufacturing, and pilot plant applications, it includes different materials, sizes, and optional accessories like tripods and valves, ensuring versatile and accurate flow measurement for diverse gases at varying pressures and temperatures.
OMEGA FLDA3203ST Gas Flow Meter Specifications:
- Standard Accuracy: +5% of full scale (FS)
- Repeatability: +0.25%
- Useful Flow Range: 10:1 minimum
- Maximum Operating Pressure: 200 psig/13.8 bars
- Maximum Operating Temperature: 121°C (250°F)
- Flow Tubes: Heavy walled borosilicate glass
- Floats: Glass, red sapphire, 316 stainless steel, carboloy, tantalum
- Connection Type: 4 NPT female inlet and outlet
- Construction Materials: Aluminum, black anodized, or 316 stainless steel frames
- Front Shield: Polycarbonate with magnifier lens
- Back Plate: 4 inches thick white acrylic
- O-Rings: Buna (standard), FKM (optional), perfluoroelastomer, EPR
- Maximum Flow: Varies from 1 L/min to 1500 mL/min depending on model
- Maximum Pressure: 200 psig/13.8 bars
- Temperature Range: Up to 121°C (250°F)

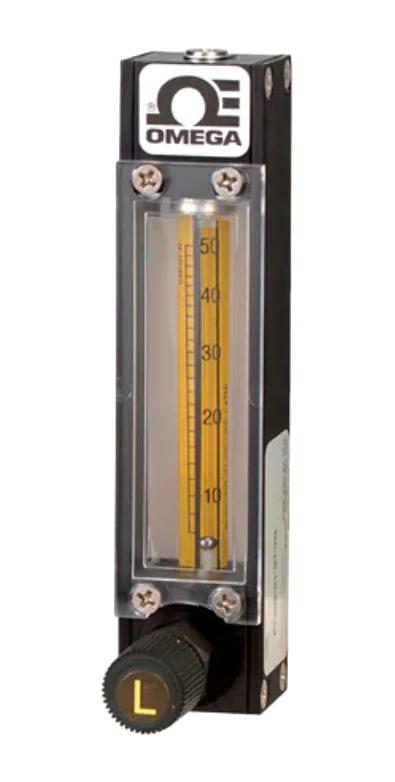

Buy the Buy Omega Flow Meter Part Number FLDA3203ST Online
Enhance your project accuracy with the Omega Series FLDA3203ST gas flow meter. Featuring interchangeable glass and stainless steel floats, precision scale, magnifier lens, and suitable for various gases including air, nitrogen, and oxygen. Easy panel mounting and reliable connections ensure simple installation. Ideal for laboratories, manufacturing, and pilot plants, this flow meter provides consistent, high-accuracy readings under maximum pressures of 200 psig and temperatures up to 121°C, making it a versatile choice for precise flow measurement needs.
Order your Omega Series FLDA3203ST flow meter today and experience reliable and precise gas measurement for laboratory and industrial projects.
