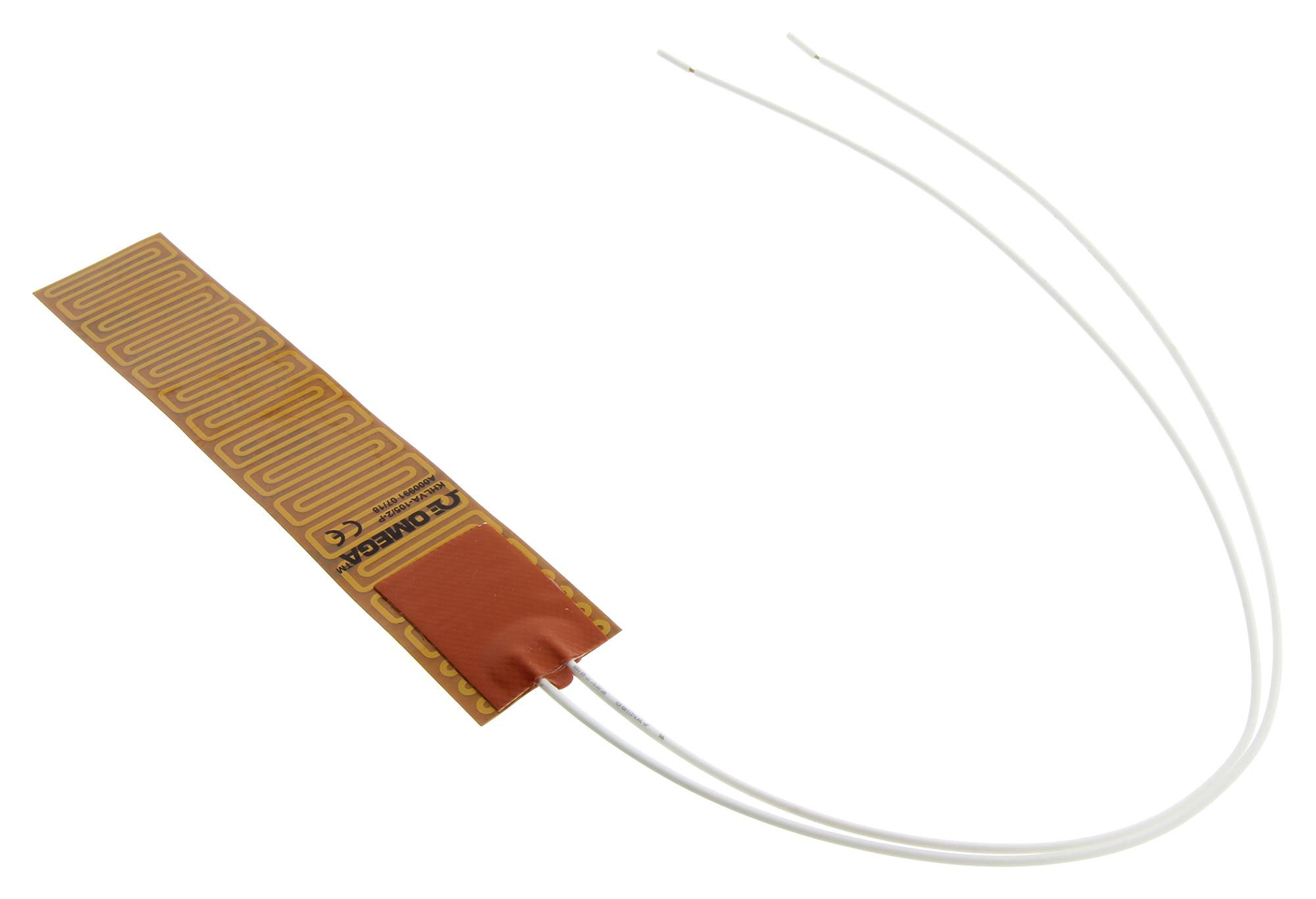

OMEGA KHLVA1052P Polyimide Heater
The KHLVA-1052-P is a flexible polyimide film insulated heater designed for customizable heating applications. Featuring an etched foil design, maximum thickness of 0.010 inches, and wattage options of 2.5, 5, or 10 W/in. It operates at 28V with a temperature rating up to 150°C (302°F). The heater includes options with pressure-sensitive adhesive, is highly resistant to chemicals, and offers easy fit into complex shapes. Its robust insulation and variable sizes make it suitable for precise, efficient heating in industrial processes.
OMEGA KHLVA1052P Polyimide Heater Specifications:
- Material: Polyimide film with etched foil design
- Thickness: Max 0.010 inches
- Operating Temperature: Up to 150°C (302°F)
- Voltage: 28V (also 115V, 230V options)
- Wattage: 2.5, 5, or 10 W/in
- Dielectric Strength: 1250 VAC for 1 second
- Minimum Bending Radius: 0.032 inches
- Wires: UL 1180, stranded, AWG 22, PTFE insulated
- Options: With or without pressure-sensitive adhesive
- Dimensions: Custom sizes, typically 1 inch to 12 inches in length and width
- Maximum Temperature Rating (with PSA): 149°C (-40 to 300°F)
- Construction: Polyimide material encasing Inconel 600 resistive foil element
- Watt Density Tolerance: +10%
- Certifications: UL listed, CSA certified
Buy the Buy Omega Polyimide Film Insulated Heater Part Number KHLVA1052-P Online
Order the Omega Polyimide Heater KHLVA-1052-P online today and ensure efficient, flexible, and highly resistant heating for your industrial processes. This customizable heater features an etched foil design, operates up to 150°C, and is available with optional pressure-sensitive adhesive for easy application. Its durable construction and precise wattage options make it ideal for demanding environments. Purchase now to benefit from fast delivery, detailed documentation, and a reliable heating solution tailored to your specific requirements.
Buy Omega KHLVA-1052-P now and experience unmatched reliability and precision heating for industrial applications.
Frequently Asked Questions
Where can I buy OMEGA KHLVA1052P?
You can click on the BUY or RFQ button to purchase KHLVA1052P from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KHLVA1052P?
You can download the KHLVA1052P datasheet or visit the OMEGA website for support.
Who is the manufacturer of KHLVA1052P?
OMEGA
