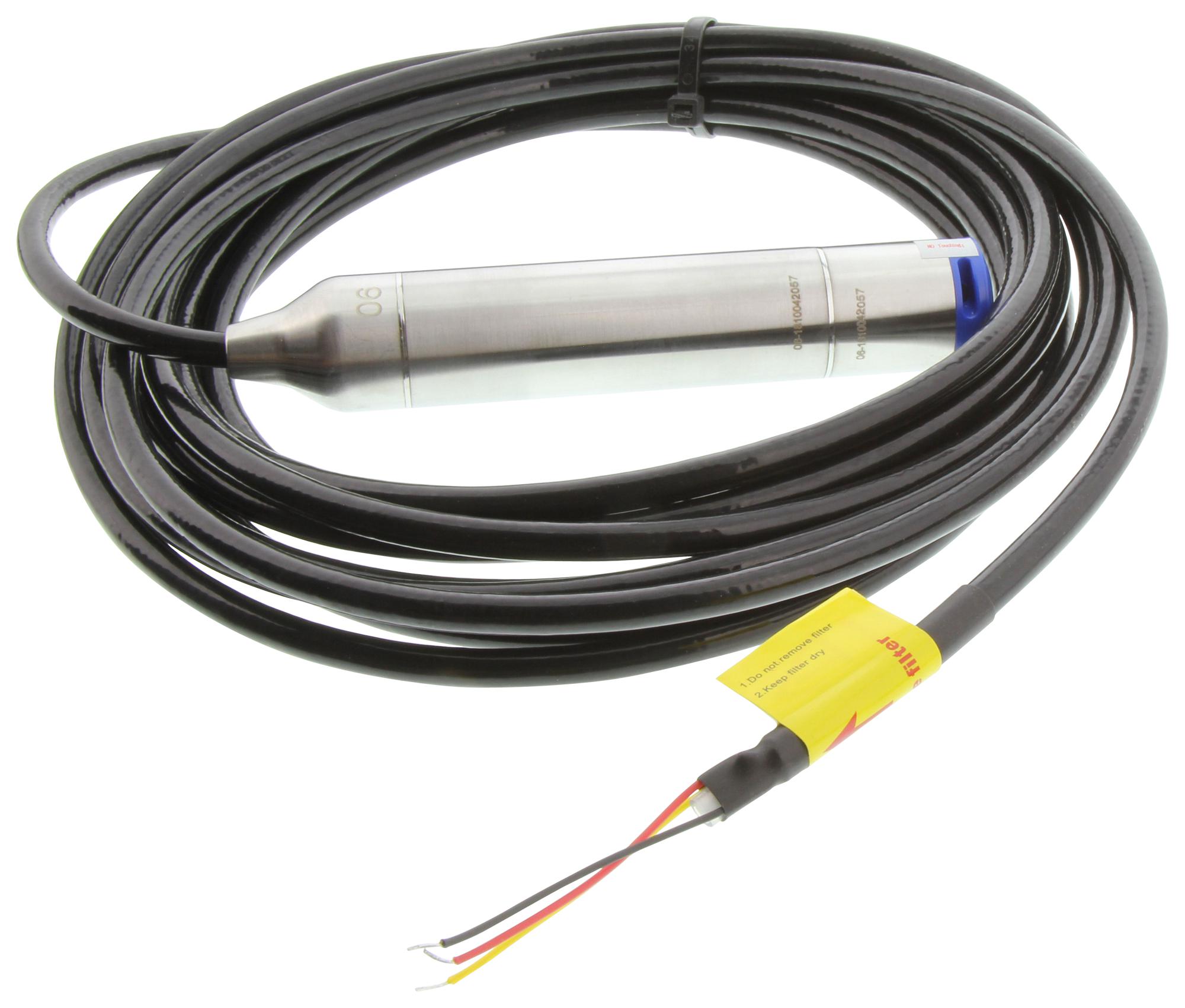

OMEGA PX633A5100GI Submersible Level Transmitter
The PX633 submersible level transmitter offers high accuracy and reliability for demanding level measurement applications. Equipped with advanced microprocessor technology, it ensures precise measurements through comprehensive linear and temperature error compensation. The rugged stainless steel body and full potting design facilitate complete submergibility and long-term durability, making it ideal for harsh environments. Features include transient voltage protection, a unique cable seal system, and an inverted cone seal to extend sensor life. With calibration and CE certification, it provides high static accuracy and repeatability for industrial liquid level measurements.
OMEGA PX633A5100GI Submersible Level Transmitter Specifications:
- Accuracy: 0.01% FS NLHR for PX633A1, 0.25% FS NLHR for PX633A2, 0.50% FS NLHR for PX633A5
- Long Term Stability: +0.2% FS per year
- Ambient Temperature Effects: 40.2% FS per 10K from 20°C to 80°C
- Supply Voltage: 10.5 to 55VDC, Max Current: 20.8mA
- Output Signal: 4 to 20mA DC, Load Resistance: (U-10)/0.021
- Protection Class: IP68, Cable Diameter: 7.5+0.2mm
- Sensor Seal: O-ring, FMK, Diaphragm Material: 316 SS
- Fill Fluid: Silicon oil, Operating Temp: -10°C to 70°C, Storage Temp: -30°C to 80°C
- Vibration Resistance: 20g (5-2000Hz) <0.1% FS, EMC Compliance per IEC and GB standards
- Connection: PUR cable, Thread M20 (other threads available), Max Transmission Distance: 1000m
Buy the Buy OMEGA High Accuracy Submersible Level Transmitter Part Number PX633A5100GI Online
Purchase your Omega PX633A5100GI submersible level transmitter online now to benefit from high accuracy, robust stainless steel construction, and full submergibility for industrial and demanding level measurement applications. This device integrates advanced microprocessor technology with comprehensive temperature and linear error compensation, ensuring high precision across a wide range of pressures up to 100 psi. Engineered with a durable seal system, it offers long-term reliability, transient voltage protection, and CE certification, making it the ideal choice for critical liquid level monitoring in harsh environments.
Order your Omega PX633A5100GI submersible level transmitter today and ensure precise, reliable liquid level measurements in demanding environments.
Frequently Asked Questions
Where can I buy OMEGA PX633A5100GI?
You can click on the BUY or RFQ button to purchase PX633A5100GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX633A5100GI?
You can download the PX633A5100GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX633A5100GI?
OMEGA
