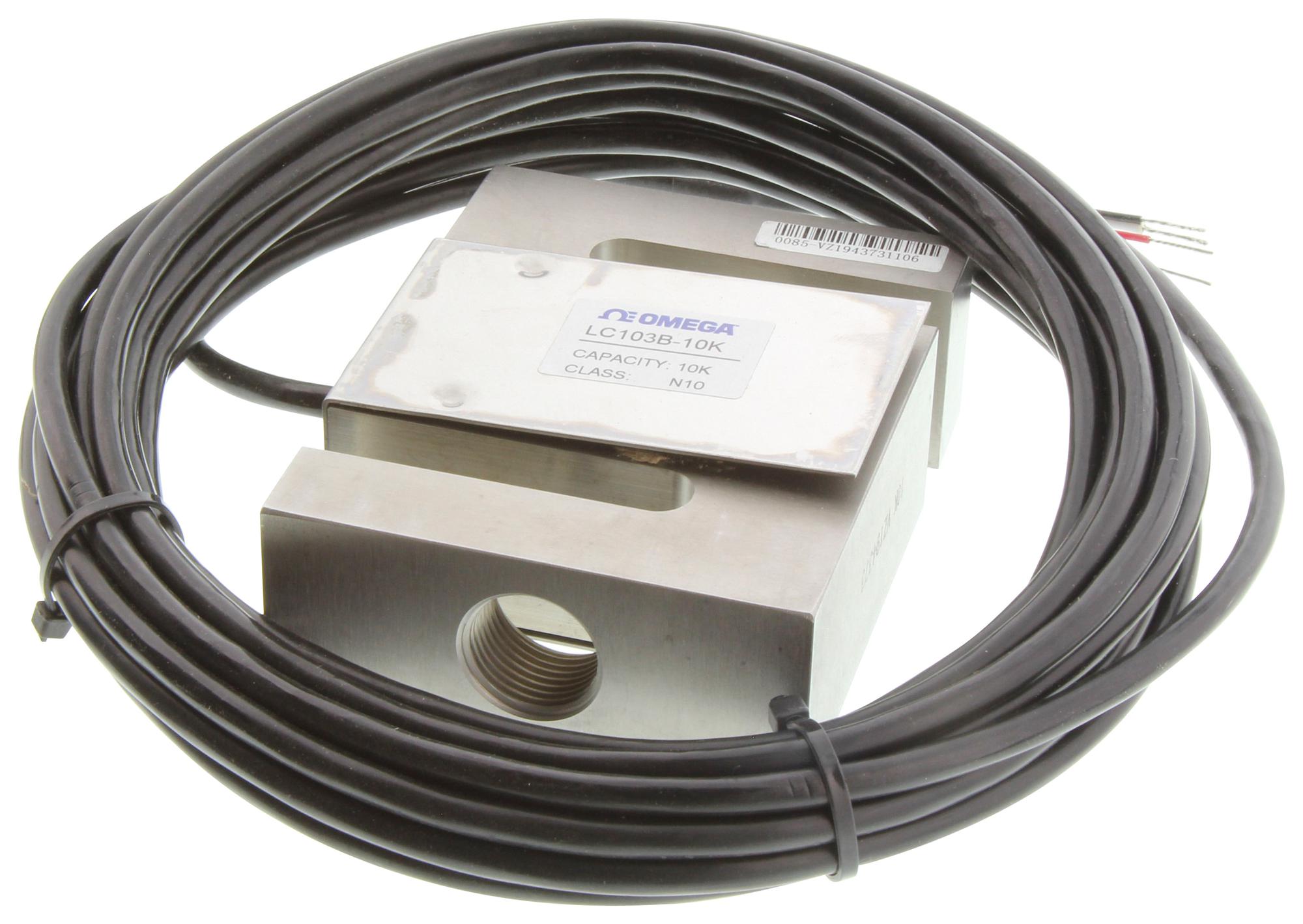

OMEGA LC103B10K Stainless Steel S-Beam Load Cell
Omega's LC103B series stainless steel S-beam load cells offer high accuracy for tension and compression applications, like tank weighing and hoppers. Sealed for IP67 ingress protection, they withstand harsh environments. Designed for easy installation, these load cells provide linearity and stability, meeting OIML R60 C3 standards for legal metrology. Available in capacities from 25 to 20,000 lbs, they feature rugged construction with precision sealing, making them suitable for industrial, electronic weighing, and crane scale applications, ensuring durability and consistent performance under demanding conditions.
OMEGA LC103B10K Stainless Steel S-Beam Load Cell Specifications:
- Capacity: 25 to 20,000 lbs (11 to 9072 kg)
- Material: Stainless steel
- Ingress protection: IP67
- Accuracy: Class C3, OIML R60 certified
- Output sensitivity: 3.04 ± 0.008 mV/V (<25 lb), other capacities proportionally similar
- Maximum number of load cell intervals: 3000
- Safe overload: 150% of full scale
- Ultimate overload: 300% of full scale
- Zero balance: ±1.0% FS
- Excitation voltage: 5–12 V DC (recommended), max 18 V DC
- Input resistance: 430 ± 60 Ω
- Output resistance: 351 ± 2 Ω
- Insulation resistance: ≥5000 MΩ at 50 V DC
- Operating temperature: -35°C to 65°C
- Storage temperature: -40°C to 70°C
- Element material: Stainless steel
- Thread sizes: varied from 1/26-20 UNF to 1 1/8-20 UNF depending on capacity
Buy the Buy Omega High Accuracy Stainless Steel S-Beam Load Cells Part Number LC103B10K Online
Acquire the Omega stainless steel S-beam load cell LC103B10K directly online for precise tension and compression measurement. This rugged, IP67 sealed load cell features high accuracy, making it ideal for industrial weighing, hopper scales, and crane applications. Its durable stainless steel construction ensures performance in harsh environments, with capacities ranging from 25 to 20,000 pounds. With certified calibration, excellent linearity, and simple installation, purchasing this reliable load cell online guarantees consistent, long-lasting operational excellence for demanding industrial uses.
Buy Omega LC103B10K stainless steel load cell now and experience reliable tension and compression measurement for industrial and weighing applications.
Frequently Asked Questions
Where can I buy OMEGA LC103B10K?
You can click on the BUY or RFQ button to purchase LC103B10K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC103B10K?
You can download the LC103B10K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC103B10K?
OMEGA
