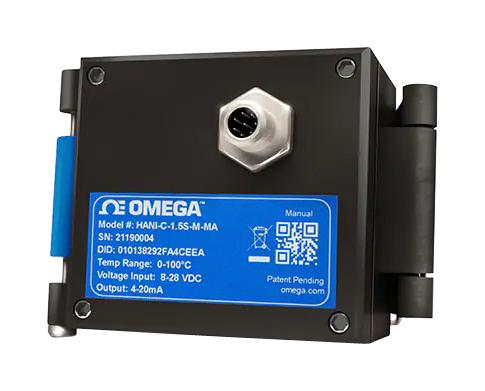

OMEGA HANIC15SMMA Clamp Temperature Sensor
The HANI™ clamp sensor provides high-accuracy, non-invasive temperature measurement for metal pipes. It measures the fluid temperature inside the pipe without contact, ensuring no risk of contamination, build-up, wear, or damage from high flow rates, corrosive or abrasive liquids, or water hammer. Featuring an easy clamp-on design, it is suitable for new installations or retrofitting existing systems, ideal for quality control and on-the-spot sensing. The sensor offers a 4 to 20 mA analog output over a temperature range of 0 to 100°C, with an accuracy of ±0.5°C for sanitary metal pipes. It has a response time of approximately 5 to 10 seconds, an IP65 environmental rating, and requires no drilling, welding, or downtime during installation. Its hybrid temperature sensing technology, combined with Layer N connectivity, ensures fast, reliable performance without penetrating the pipe.
OMEGA HANIC15SMMA Clamp Temperature Sensor Specifications:
- Power Supply Voltage: 8 Voc - 28 Voc (loop powered)
- Analog Output: 4 to 20 mA
- Process Range: 0 to 100°C liquid
- Pipe Diameters: 1 to 2 inches (others available)
- Accuracy: ±0.5°C for sanitary pipes; ±1.0°C for industrial pipes, calibrated improvement possible
- Response Time: t63 = 5 seconds, t90 = 10 seconds
- Environmental Rating: IP65 when mated
- Dimensions: 60.3 mm W x 64.31 mm L x 51.54 mm H
- Materials: PA12, silicone rubber, nickel-plated brass, stainless steel
- Operating Temperature: 0 to 40°C
- Certifications: CE, EMC, low voltage safety standards
- Connectivity: Layer N Smart Interface compatible, wireless options available
Buy the Omega Series HANI Clamp Sensor: HANIC15SMMA
Purchase the Omega HANI Clamp Sensor online today to enjoy seamless, non-invasive temperature monitoring for metal pipes. Its easy clamp-on installation saves time, eliminates the need for drilling or welding, and provides accurate readings from 0 to 100°C with ±0.5°C precision for sanitary pipes. Designed for quick retrofitting and new systems alike, it offers a robust 4–20 mA output, Layer N connectivity, remote data logging, and fast response times. Enhance your process control with this reliable, easy-to-use sensor delivering high accuracy and minimal downtime.
Get Omega HANI Clamp Sensor today—built for precise, non-invasive temperature measurement on metal pipes with quick installation and reliable performance.
