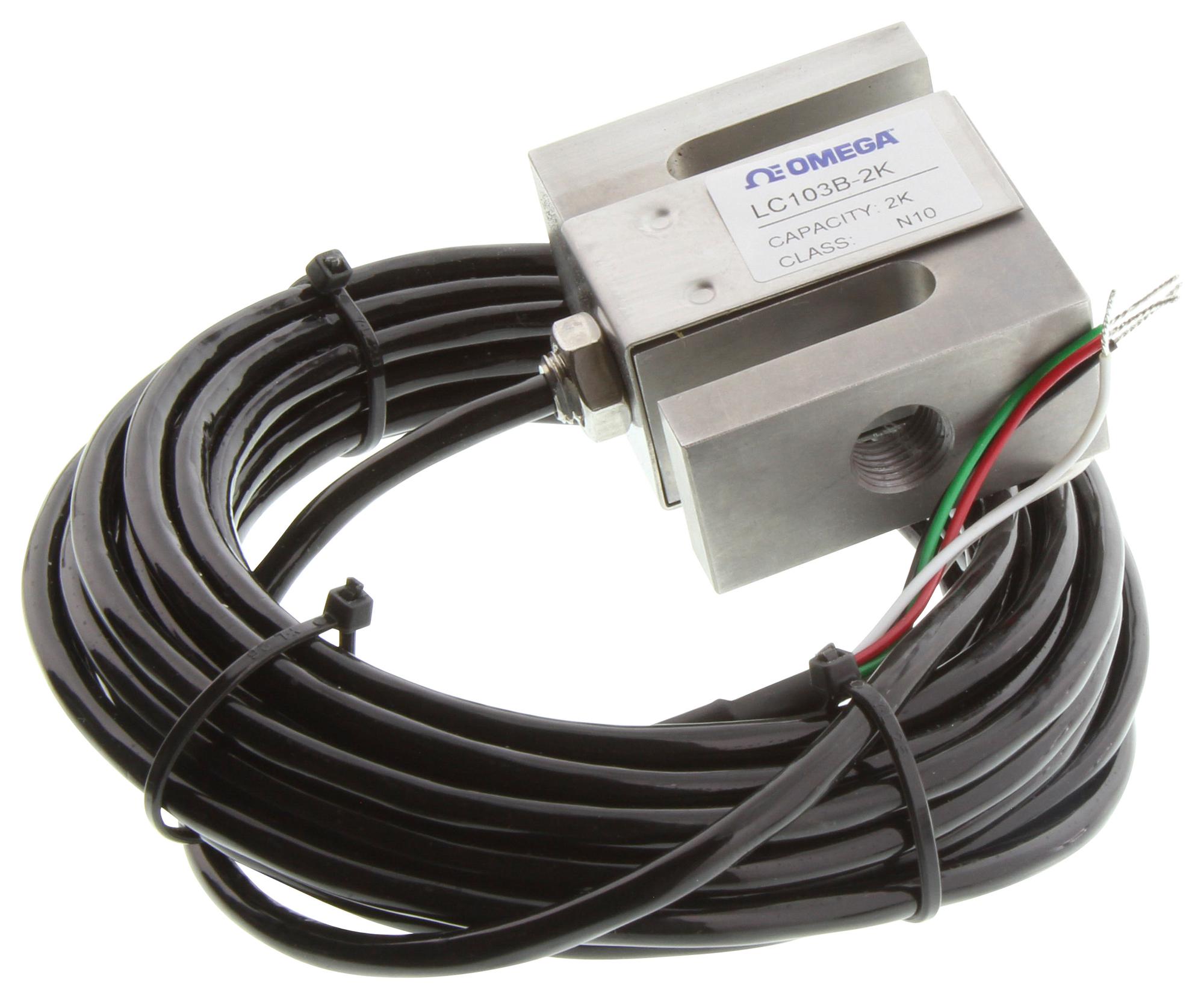

OMEGA LC103B2K Stainless Steel S-Beam Load Cell
Omega's LC103B series stainless steel S-beam load cells offer high accuracy and durability for tension and compression applications. Suitable for crane scales, hopper weighing, and truck scales, these compact sensors feature superior linearity, excellent temperature stability, and IP67 ingress protection. They are engineered with corrosion-resistant stainless steel, sealed inside with adhesive, ensuring water-proofness for all environments. With capacities ranging from 25 to 20,000 pounds, these load cells meet OIML R60 C3 standards, providing reliable, precise force measurement in demanding industrial settings.
OMEGA LC103B2K Stainless Steel S-Beam Load Cell Specifications:
- Accuracy: class C3 for capacities above 25 lb
- Approval: OIML R60 for capacities above 25 lb
- Output Sensitivity: 3.0 ± 0.08 mV/V
- Maximum Load Cell Intervals: 3000
- Verification Interval Ratio: 1:10,000
- Combined Error: +0.020% of full scale
- Safe Overload: 150%
- Ultimate Overload: 300%
- Zero Balance: +1.0%FS
- Excitation Voltage: 5-12V DC (max 18V)
- Input Resistance: 430 ± 60Ω
- Output Resistance: 351 ± 2Ω
- Insulation Resistance: ≥ 5000 MΩ at 50V DC
- Operating Temperature: -10°C to +40°C
- Storage Temperature: -40°C to +70°C
- Element Material: Stainless Steel
- Ingress Protection: IP67 according to EN 60529
- Recommended Torque on Fixation: 1/4" UNF: 18 lbf.ft, 1/2" UNF: 55 lbf.ft, 3/4" UNF: 330 lbf.ft, 1 1/8" UNF: 1070 lbf.ft
Buy the Omega LC103B – Reliable S-Beam Load Cell for Industrial Applications
Enhance your industrial weighing systems with Omega's durable stainless steel S-beam load cells. Designed for accuracy and robust performance, these compact sensors are ideal for crane scales, hopper weighing, and truck scales. They feature corrosion-resistant construction, sealed housing IP67 protection, and precise calibration, ensuring reliable force measurement in demanding environments. Easily installed with specified torque, these load cells offer capacities up to 20,000 pounds, meeting strict standards for legal metrology. Order online now and elevate your measurement reliability with Omega's trusted solutions.
Order your Omega Series LC103B stainless steel load cell today and get dependable tension and compression measurement for your industrial weighing needs.
