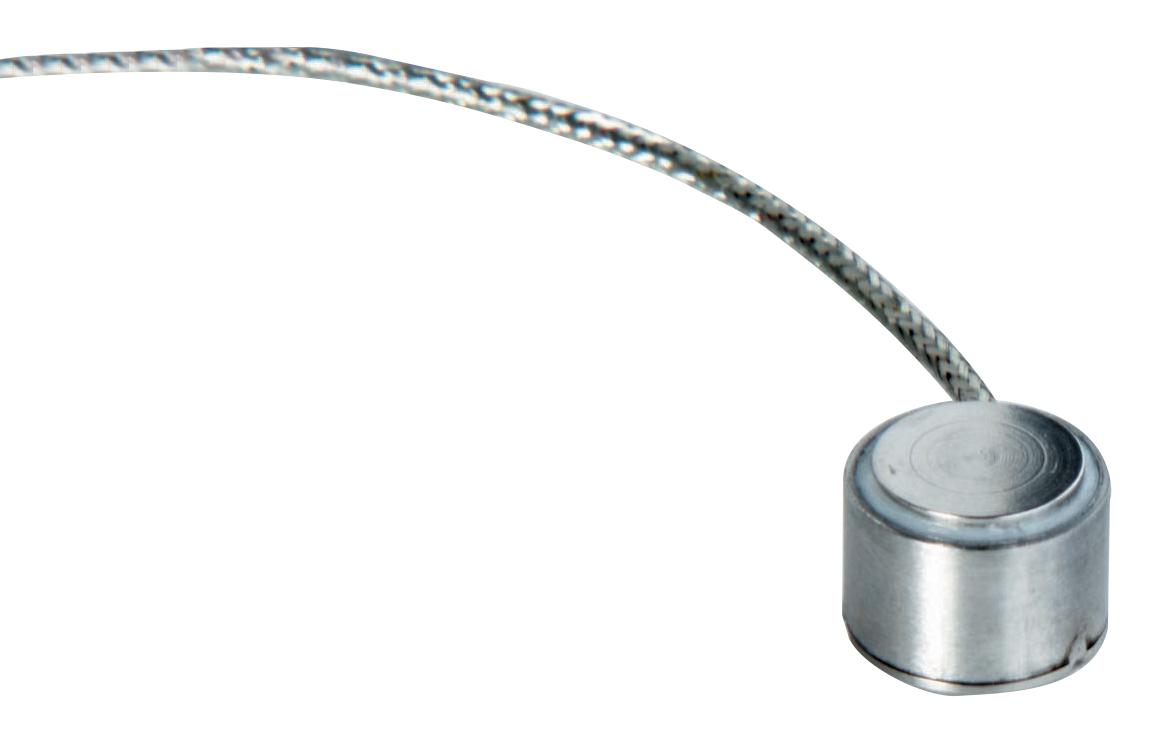

OMEGA LC30750K force load cell
The LC307-50K is a compact, high-capacity top hat load cell made of stainless steel, capable of measuring up to 50,000 pounds. Designed for applications with limited space, it features rugged construction, high-performance strain gauges, and temperature compensation via a miniature circuit board in the cable. It offers precise linearity, stability, and protection against overloading and environmental factors, making it ideal for industrial, manufacturing, and testing environments requiring reliable force measurement in a small footprint.
OMEGA LC30750K force load cell Specifications:
- Excitation: 5 Vdc
- Output: 1.5 mV/V nominal
- Accuracy: 0.75% FS BFSL
- Zero Balance: +2% FSO
- Operating Temp Range: -54 to 121°C
- Compensated Temp Range: 16 to 71°C
- Thermal Effects: Span +0.018% rdg/°C, Zero +0.018% FSO/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Bridge Resistance: ≥350 Ω
- Full Scale Deflection: 0.001 to 0.003 inches
- Cable: 1.5 m (5 feet) 4-conductor with compensation board
- Protection Class: IP54
- Dimensions for 50,000 lb capacity: Diameter approximately 50.8 mm (2.00 inches), height varies
Buy the Brand Name LC307-50K – Reliable Force Sensor for Industrial Applications
Order the Force Load Cell with 50,000 lb capacity online and benefit from reliable performance in space-constrained applications. Crafted from stainless steel, it ensures durability and stability under demanding conditions. Its compact design makes it suitable for testing, manufacturing, and industrial measurement tasks where precision and robustness are vital. Equipped with high-accuracy strain gauges, temperature compensation, and environmental protection, this load cell guarantees accurate readings and long-term reliability. Step up your measurement system by purchasing this high-capacity force sensor online now.
Get Brand Name LC307-50K today—built for precision and long-lasting durability in high-capacity force measurement.
