OMEGA LC30410K Compression Load Cell
The LC304-10K is a stainless steel compression load cell with a 25 mm (1-inch) diameter, designed for high accuracy and durable measurements in industrial applications. This miniature load cell features a rugged stainless steel case, 5-point calibration, and an IP65 rating for protection against dust and water ingress. Suitable for a wide range of force measurements from 0-10,000 pounds or 0-4,496 newtons, it includes a 1.5-meter 4-conductor cable for easy wiring. Its high-quality construction ensures reliable and precise load sensing in demanding environments.
OMEGA LC30410K Compression Load Cell Specifications:
- Material: Stainless steel
- Diameter: 25 mm (1 inch)
- Capacity range: 0-10,000 lb or 0-4,496 N
- Output: 2 mV/V nominal
- Excitation: 10 Vdc, 15 Vdc maximum
- Temperature Range: -10°C to 71°C (14°F to 160°F)
- Zero Balance: 0.009% FSO/°C
- Overload Limit: 150%
- Protection Class: IP65
- Bridge Resistance: 350 Q minimum
- Deflection: 0.025 to 0.076 mm (0.001 to 0.003 inch)
- Cable Length: 1.5 meters (5 feet), 4-conductor
- Calibration: 5-point NIST-traceable
- Ultimate Overload: 300% of capacity

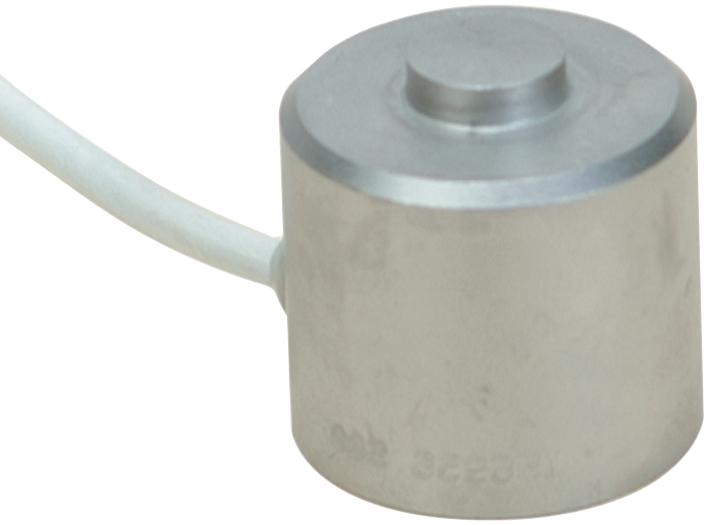

Buy the Omega LC304-10K – Reliable Compression Load Cell for Industrial Applications
Experience accurate force measurement with the Omega LC304-10K compression load cell, designed from durable stainless steel and protected with IP65. Its compact size with a 25 mm diameter makes it ideal for mounting in tight spaces. This load cell features a high output of 2 mV/V, a wide capacity range from 0 to 10,000 pounds, and includes a 1.5-meter cable for easy wiring. Perfect for industrial automation, testing, and force measurement applications requiring high precision and robust construction.
Get Omega LC304-10K today—built for precise force measurement and long-lasting durability in industrial settings.
