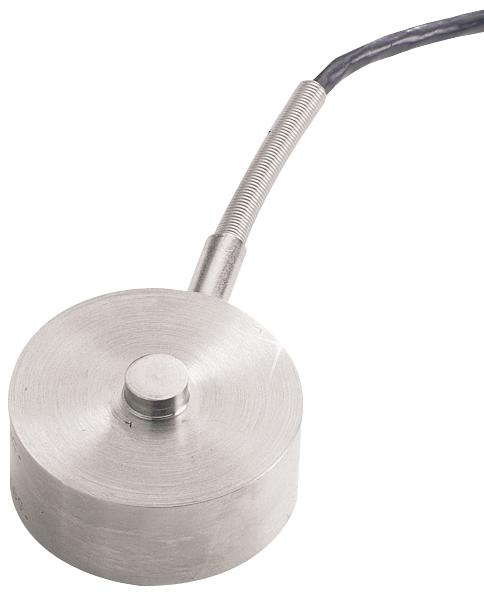

OMEGA LCGD500 Low-Profile Compression Load Cell

The LCGD-500 from Omega is a miniature, low-profile compression load cell with a capacity of 0 to 500 pounds. Constructed from stainless steel, it offers excellent long-term stability and reliability in harsh industrial environments. The load cell features an integral load button and is designed for mounting on flat surfaces. It operates with a 10 VDC excitation and provides a nominal output of 2 mV/V. Key specifications include a linearity within ±0.25% of full scale, hysteresis of ±0.20%, repeatability of ±0.10%, and a zero balance within ±2%. The device functions effectively across a temperature range of -54°C to 121°C, with compensation between 16°C and 71°C. It can safely withstand overloads up to 150% of its capacity and an ultimate overload of 300%. The bridge resistance is at least 350 ohms, and it has IP65 protection with a deflection of 0.076mm (0.003 inches). The load cell comes with a 1.5 meter (5-foot) shielded cable and is compatible with DPiS, DP41-S, and DP25B-S meters. When purchased, it includes the load cell, a 5-point NIST-traceable calibration, and 59Kohm shunt data.

View LCGD500Datasheet [pdf]

Buy the Buy Omega Load Cell Part Number LCGD500 Online

Purchase the Omega LCGD-500 low-profile stainless steel compression load cell online today for precise force measurement in industrial settings. With a 0-500 lb capacity, high stability, IP65 protection, and compatibility with various digital meters, this durable device guarantees long-term reliability. It comes with a 5-point NIST-traceable calibration and shunt data, supporting accurate calibration and testing. Ideal for mounting on flat surfaces, it withstands harsh conditions while providing consistent, repeatable readings for force, weight, or load measurements. Fast online ordering ensures quick integration into your projects.

Order your Omega LCGD-500 miniature low-profile compression load cell today and ensure accurate force measurement in demanding industrial applications.
