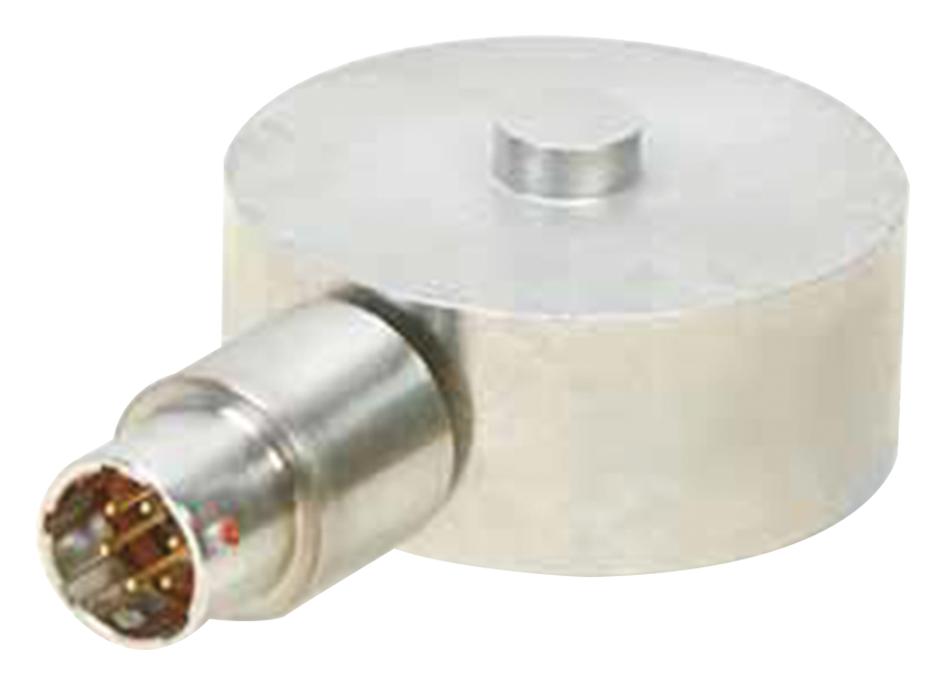

OMEGA LC3155K Miniature Compression Load Cell
The LC3155K is a stainless steel, miniature compression load cell with a 5,000 lb capacity, IP65 protection, and built-in load button for easy installation. Suitable for test benches, industrial weighing, and prototype structures, it features a compact 2-inch diameter, 0.025 to 0.075 mm deflection, and operating temperature from -46°C to 107°C. Its high accuracy (±0.25% linearity), 10 Vdc excitation, and 2 mV/V output make it ideal for precise force measurements in demanding environments.
OMEGA LC3155K Miniature Compression Load Cell Specifications:
- Construction: Stainless steel
- Capacity: 5,000 lb
- Protection Class: IP65
- Excitation: 10 Vdc, 15 Vdc maximum
- Output: 2 mV/V (+0.25%)
- Linearity: +0.15% FSO
- Hysteresis: 0.1% FSO
- Repeatability: +0.05% FSO
- Zero Balance: +2% FSO
- Deflection: 0.025 to 0.075 mm
- Operating Temp Range: -46°C to 107°C
- Compensated Temp Range: 16°C to 71°C
- Thermal Zero Effect: 0.0025% FSO/°F
- Thermal Span Effect: 0.005% FSO/°F
- Overload Protection: 150% of capacity
- Ultimate Overload: 300% of capacity
- Cable Length: 3 m (10') 4-conductor shielded PVC cable
- Mounting Holes: 8 in total, equidistant, bottom view shows mounting holes
- Electrical Resistance: Input 360 Ω min, Output 3500 Ω ±100
- Dimensions: Diameter 51 mm (2.00 inches), height approx. 22 mm (0.88 inches)
Buy the Omega Series LC3155K Compression Load Cell: 5000 lb Stainless Steel
Purchase the Omega Series LC3155K miniature stainless steel compression load cell online today. This high-precision, IP65-rated sensor offers a 5,000 lb capacity, built-in load button for simple installation, and a compact design measuring just 2 inches in diameter. Ideal for test benches, industrial weighing, and prototype structures, it features a 2 mV/V output, 10 Vdc excitation, and operates reliably from -46°C to 107°C. Order now to get fast, reliable delivery and enhance your measurement accuracy.
Order your Omega Series LC3155K stainless steel compression load cell today and ensure precise force measurement for industrial and testing needs.
