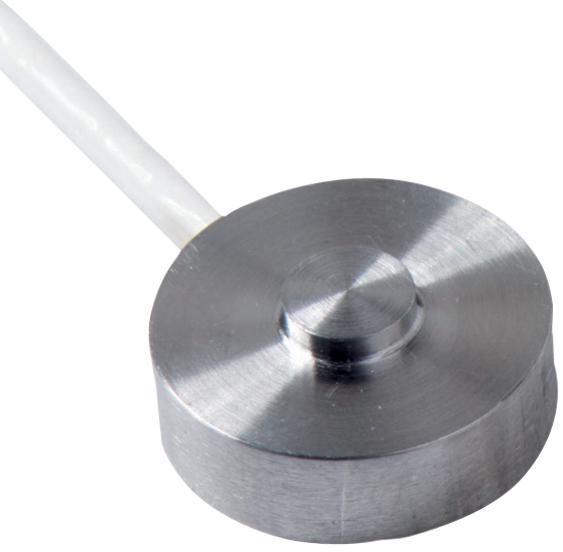

OMEGA LCKD5 Subminiature Compression Load Cell
The LCKD-5 from Omega is a compact industrial compression load cell made of stainless steel, ensuring durability in harsh environments. It features high-performance strain gauges that provide excellent linearity and stability across load ranges from 1 kg to 1000 lb. The device includes a miniature circuit board for temperature compensation and connects via a 1.5-meter, 4-conductor insulated cable. With a maximum excitation voltage of 7VDC, it offers high accuracy, ±0.25% FSO linearity, and a working temperature range from -54°C to 121°C. It supports overloads up to 150% of capacity. Its IP54 rating makes it suitable for rugged industrial applications.
OMEGA LCKD5 Subminiature Compression Load Cell Specifications:
- Material: Stainless steel
- Capacity: 5 pounds (22.2N)
- Output: 2mV/V nominal
- Maximum Excitation Voltage: 7VDC
- Linearity: ±0.25% FSO
- Hysteresis: ±0.25% FSO
- Repeatability: ±0.10% FSO
- Zero Balance: Within ±2% FSO
- Operating Temperature Range: -54°C to 121°C (-65°F to 250°F)
- Compensated Temperature Range: 16°C to 71°C (60°F to 160°F)
- Protection Class: IP54
- Cable: 1.5 meters, 4-conductor insulated with temperature compensation circuit
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Dimensions: Diameter approximately 22 mm, height 3 mm
- Calibration: 5-point NIST-traceable
Buy the Omega Series LCKD Subminiature Compression Load Cell: LCKD-5
Order the Omega LCKD-5 compression load cell online today to ensure precise force measurement in your industrial setup. Featuring stainless steel construction and high-performance strain gauges, this compact sensor offers excellent linearity and stability. With a capacity of 5 pounds and compatibility with various precision meters, it provides accurate readings within a temperature range of -54°C to 121°C. The device is protected by an IP54 rating, includes a 5-point NIST-traceable calibration, and comes with a 1.5-meter, 4-conductor cable with temperature compensation circuitry, making it ideal for rugged industrial environments.
Buy Omega LCKD-5 load cell now and experience unmatched durability, high accuracy, and reliable force measurement for industrial applications.
