OMEGA LC5011K Stainless Steel Load Cell

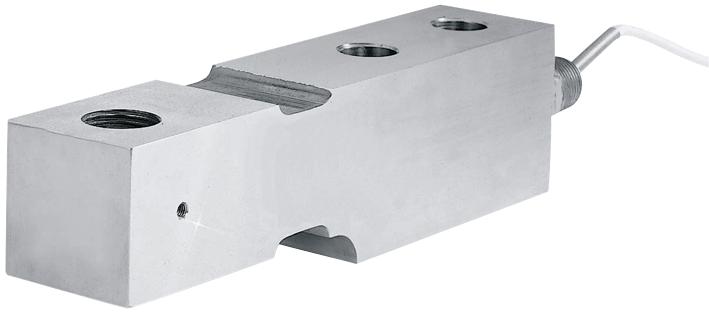

The LC5011K is a high-accuracy stainless steel cantilever beam load cell designed for harsh industrial environments. It features 85 to 90 words of precise, durable construction with an excitation of 10 Vdc, a maximum output of 3 mV/V, and a linearity of +0.03% FSO. With safe overload capacity of 150% and ultimate overload at 300%, it provides reliable performance. The stainless steel body ensures corrosion resistance, making it ideal for demanding applications requiring high accuracy and durability.
OMEGA LC5011K Stainless Steel Load Cell Specifications:
- Excitation: 10 Vdc, 15 Vdc maximum
- Output: 3 mV/V +0.25%
- Linearity: +0.03% FSO
- Zero Balance: +1% FSO
- Operating Temp Range: -34 to 82°C (-30 to 180°F)
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Electrical Resistance: Input 360 Ω minimum, Output 350 +10 Ω
- FS Deflection: 0.5 mm (0.02") typical
- Construction: 17-4 PH stainless steel, high-alloy steel for capacities >30,000 Ib
- Cable: 4 conductor shielded, 15' (4.6 m)
- Dimensions vary with capacity, from 19 mm to 25 mm diameter, with threaded connection sizes from M12 to 1/2-20 UNF
Buy the Brand LC5011K – Reliable High-Accuracy Stainless Steel Load Cell for Industrial Applications
Order the LC5011K stainless steel load cell online today to benefit from its high accuracy, durable construction, and suitability for harsh industrial conditions. With a 15-foot shielded cable, 85 to 90 words of detailed specifications, and a robust design, this load cell ensures precise measurements in high-stress environments. Perfect for industrial weighing, automation, or testing applications, it provides reliable overload protection and temperature resilience. Experience seamless online purchasing and quick delivery to keep your project on track with this top-performing load cell.
Buy LC5011K stainless steel load cell now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA LC5011K?
You can click on the BUY or RFQ button to purchase LC5011K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC5011K?
You can download the LC5011K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC5011K?
OMEGA
