OMEGA CN16D3RR2UCMAC Process Controller
The CN16D3RR2UCMAC is a versatile temperature, process, and strain controller designed for industrial automation. It features high-accuracy inputs, a bright 3-color LED display, and extensive programmability with up to 99 programs and ramp/soak segments. The controller supports multiple input types including thermocouples, RTDs, thermistors, Voltage and Current signals, and strain gauges, with full digital communication via USB, optional Ethernet, and serial interfaces. It offers configurable outputs such as relays, DC pulses, and analog signals, along with advanced features like auto-tune PID, fuzzy logic, cascade control, and external communications for precise, reliable process control.
OMEGA CN16D3RR2UCMAC Process Controller Specifications:
- Input Types: Thermocouple (9 types), RTD, Thermistor, Analog Voltage/Current, Strain
- Input Ranges: Thermocouple -210 to 1820°C, RTD 100/500/1000Ω, Thermistor -40 to 150°C, Voltage -100 to 100 mV to -10 to 10 V, Current 4-20 mA
- Input Accuracy: 0.03% Full Scale for Voltage and Current, 0.4°C for thermocouples, 0.2°C for thermistors
- Display: 4-digit, 9-segment LED, Bright 3-color (Red, Green, Amber), 10.2 mm or 21 mm height
- Control Modes: ON/OFF, PID with Auto-Tune and Fuzzy Logic, Proportional, Derivative, Integral
- Ramp/Soak Programs: Up to 99, with 8 segments each, chainable; Includes ramp/soak events and remote start
- Outputs: 2 to 6 Programmable, including DC Pulse, SSR, SPST/SPDT Relays, Analog Voltage (0-10V), Current (0-20mA), Isolated options
- Communication: Standard USB Host, optional Ethernet (RJ45), RS232/RS485, MODBUS, ASCII protocols
- Power Supply: 90-240 Vac, optional 12-36 Vdc (low voltage option), with UL, cUL, CE certifications
- Environmental: Operating temperature 0-50°C, 90% RH non-condensing, IP65 front bezel (NEMA 4X), NEMA 1 (panel mount)
- Physical Dimensions: CN16D Series: 48mm width, 48mm height, 127mm depth; Panel cutout 45mm square, weight approx. 159g

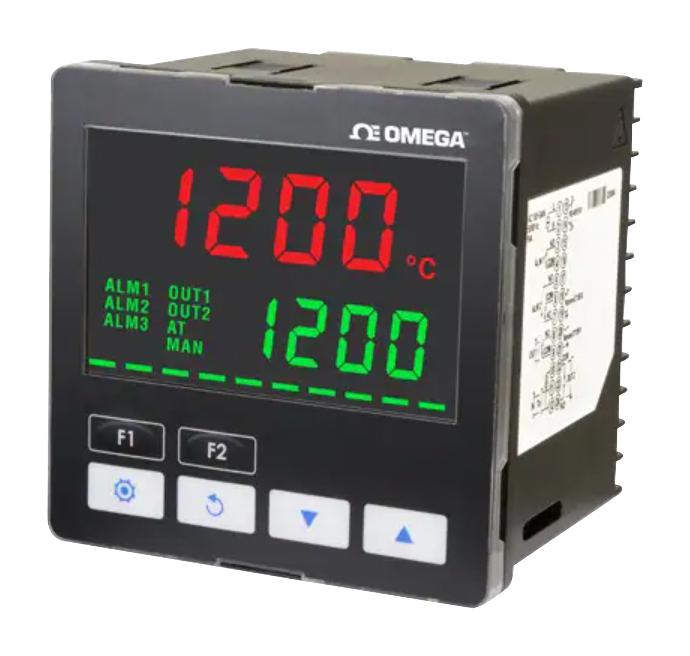

Buy the Buy Omega Temperature Process Controller Part Number CN16D3RR2UCMAC Online
Purchase the Omega CN16D3RR2UCMAC online today for a highly reliable, programmable process controller with high accuracy, multiple input types, extensive ramp/soak programming, and advanced communication options. Designed for demanding industrial applications, it offers configurable outputs including relays, DC pulses, and analog signals, ensuring precise temperature and process management. Its user-friendly interface with bright LED display, auto-tune PID, and fuzzy logic adaptive control make setup quick and straightforward, delivering optimal performance and versatility for your automation needs.
Buy Omega CN16D3RR2UCMAC now and experience unmatched reliability and precise process control with versatile inputs and advanced communications.
Frequently Asked Questions
Where can I buy OMEGA CN16D3RR2UCMAC?
You can click on the BUY or RFQ button to purchase CN16D3RR2UCMAC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN16D3RR2UCMAC?
You can download the CN16D3RR2UCMAC datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN16D3RR2UCMAC?
OMEGA
