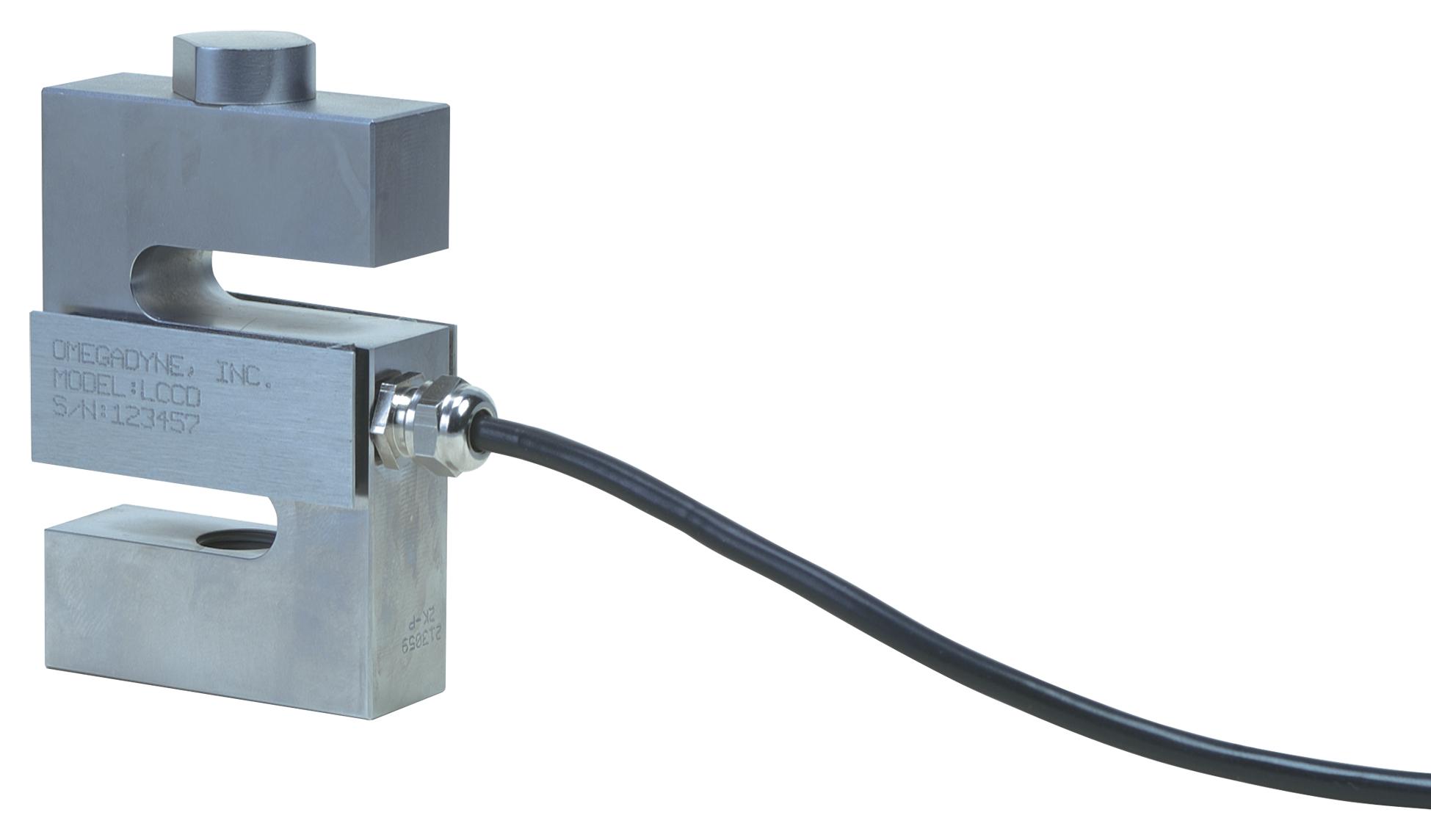

OMEGA LCCD1K Force Sensor
The LCCD-1K is a stainless steel S-beam load cell with a capacity of 1000 lb (454 kg), designed for demanding industrial environments. It features environmentally protected construction with an IP67 rating, operates on 10VDC excitation (up to 15VDC), and provides a 3 mV/V output with ±0.25% accuracy. It offers high linearity, hysteresis, and repeatability, with a creep of 0.03% over 20 minutes. Suitable for temperatures from -18°C to 66°C, it has a maximum safe load of 150% capacity, and includes a 6-meter shielded cable and calibration certificates.
OMEGA LCCD1K Force Sensor Specifications:
- Capacity: 1000 lb
- Material: 17-4PH stainless steel
- Construction: Environmentally protected, IP67 rated
- Excitation: 10 VDC (up to 15 VDC)
- Output: 3.0 mV/V ±0.25%
- Linearity: 0.03% FS
- Hysteresis: 0.02% FS
- Repeatability: 0.01% FS
- Zero Balance: 1% FS
- Creep (20 min): 0.03% FS
- Temperature Range: -18°C to 66°C
- Bridge Resistance: 350 ohms nominal
- Cable: 6 m (20 ft), shielded PVC, 4 conductors, 22 AWG
- Maximum Safe Load: 150% of capacity
- Ultimate Load: 300% of capacity
- Includes calibration certificate and shunt data.
Buy the Precisionload 1000 lb Reliable Force Sensor for Industrial Applications
Order the Precisionload 1000 lb stainless steel force sensor online today to ensure accurate and reliable force measurement in industrial settings. This IP67-rated load cell features high accuracy, excellent linearity, and robust construction from stainless steel, making it ideal for demanding environments. With a 6-meter shielded cable, comprehensive calibration certificates, and easy compatibility with digital meters, this load cell guarantees consistent performance. Invest now to benefit from dependable force measurement for your industrial applications, ensuring precision and durability in every use.
Buy Precisionload 1000 lb load cell now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA LCCD1K?
You can click on the BUY or RFQ button to purchase LCCD1K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCCD1K?
You can download the LCCD1K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCCD1K?
OMEGA
